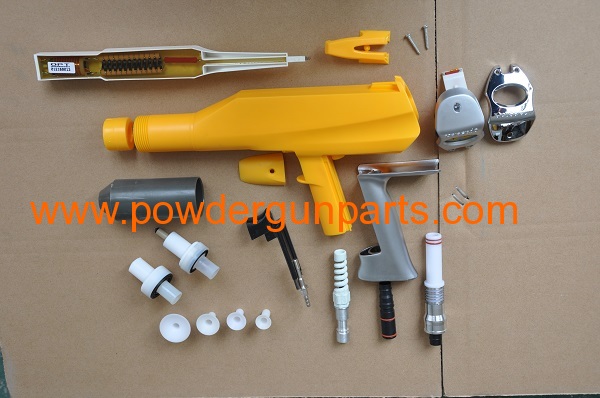

OptiSelect manual powder gun spare parts

Model: GM03
Place of Origin: Zhejiang,China (Mainland)
item number: acoorin
originla or not: not ,this is only replacement
how to order: sent email to us please
how long it will arrive to your place: 2-4working days after payment
certificate: ISO
sample: avaiable
quality: 100% promise
weight: 1.5kgs
producer: COLO
Original: china

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:2.0~3.0 USDProduction Capacity:10000pcs/month
Trade Term:FOBPacking:plastic bag,carton
Payment Terms:WU, T/TDelivery Date:1-2days
Min. Order:1 Piece/Pieces
Means of Transport:Air

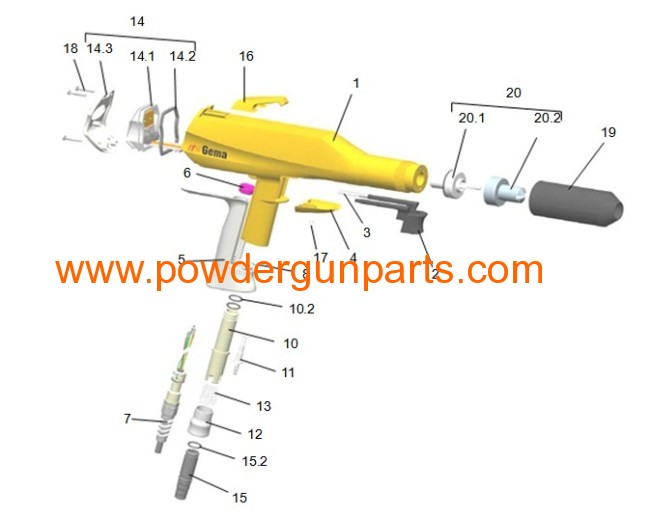

OptiSelect manual powder gun - spare parts list (cont.)

A OptiSelect manual powder gun - complete 1002 100

negative polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush

and parts kit, without powder hose

OptiSelect manual powder gun - complete 1002 101

positive polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush

and parts kit, without powder hose

B OptiSelect manual powder gun shaft (incl. cascade)

Negative polarity (-) 1001 891

Positive polarity (+) 1001 892

C Cascade (negative polarity) - complete 1000 809

Cascade (positive polarity) - complete 1002 031

1 Gun body 1001 155

Handle - complete set (pos. 5, 6, 7 and 8) 1000 807

2 Trigger - complete (incl. pos. 2 and 3) 1001 341

3 Compression spring - 0.36x4.2x49.4 mm 1001 487

4    Trigger cover 1000 801

5    Grasp termination 1000 806

6    Radial gasket 1000 803

7    Gun cable - L=6 m, complete 1001 528

Extension cable for gun cable - L=6m, incl. safety clamp 1002 161

Extension cable for gun cable - L=14m, incl. safety clamp 1002 162

Safety clamp for extension cable 1002 064

8    Grub screw - M3x8 mm 1000 844

10    Powder tube - complete 1001 339

10.2 O-ring - ?12x1.5 mm 1000 822

11    Rinsing air connection 1000 804

12    Clip ring 1000 898

13    Compression spring 1001 488

14    Back cover - complete 1000 617

14.1 Printed circuit board holder - complete (incl. pos. 14.2) 1002 029

14.2 Radial gasket 1000 795

14.3 Shield - complete 1002 028

14.4 Cap screw - M3x8 mm (not shown) 202 363

15    Hose connection - complete, for internal hose ?11-12 mm 1001 340

Hose connection - complete, for internal hose ?9-10 mm 1002 030

15.2 O-ring - ?12x1.5 mm 1000 822

16    Hook (replaceable) 1000 877

17    Countersunk head screw - M4x8 mm, plastic 263 516

18    PT-screw 1000 843

19    Threaded sleeve - complete 1000 948

20    Flat jet nozzle - complete 1000 047

20.1 Electrode holder - complete 1000 055

20.2 Flat jet nozzle 1000 049

OptiSelect adaptor for PGC control unit (not shown) 1001 952

Cleaning brush - ?12mm 389 765

Parts set (not shown), consisting of: 1002 359

Round jet nozzle - NS02, complete 382 922

Cable clamp 303 070

Deflector plate - ?16 mm 331 341

Deflector plate - ?24 mm 331 333

Deflector plate - ?32 mm 331 325

Hose connection - complete, for internal hose ?11-12 mm 1001 340

O-ring - ?12x1.5 mm 1000 822

Countersunk head screw - M4x8 mm, plastic 263 516

Powder hose - ?10 mm (not shown) 1001 673

Powder hose - ?11 mm (not shown) 105 139
