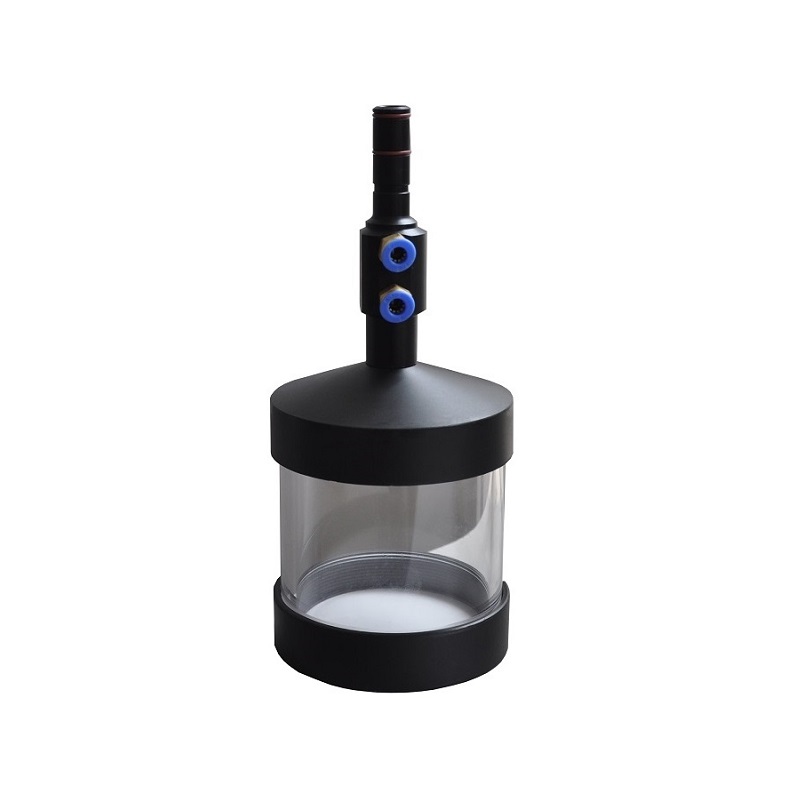

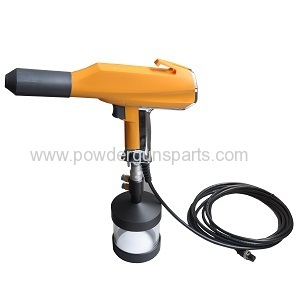

Application Cup for Manual Powder Gun, Capacity: 1lbs Powder
The application powder cup enables a very quick color change, with fluidzing plate in the bottom, ensures smooth powder conveying. It is suitable for coating mini parts or testing powders and samples in laboratory.
Application cup 150 ml
Powder output 30 - 400 g
Useful capacity: 150 ml: (approx. 1lbs of powder)
Air consumption (application range): 1.8 - 4 Nm3/h 1
Weight without connections: 130 g
Weight with pneumatic connections: 430 g
Length below the gun 153 mm
Application cup - spare parts list
Connection pipe 1002 095
O-ring - Ø 12x1.5 mm 1000 822#
Bottom 1003 563
Fluidizing plate 1004 556#
Cup cylinder - 150 ml 1004 561#
Dip tube - complete 1005 089#
Cup cover 1003 564
