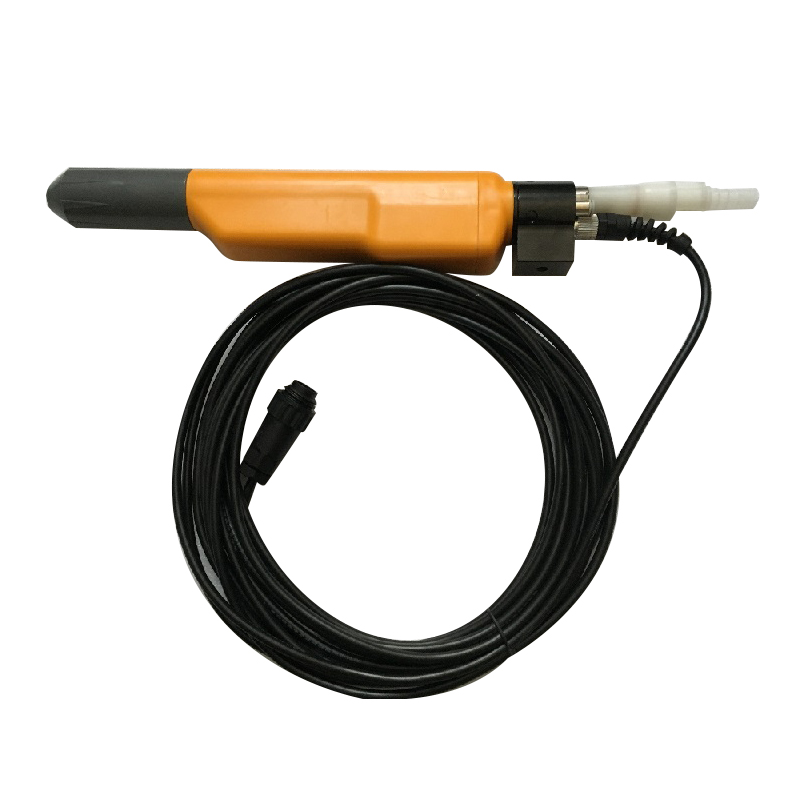

OptiGun 2-A(X) (GA02) Automatic Powder Gun

OptiGun 2-A Automatic powder gun - complete, negative polarity 393 568

OptiGun 2-A Automatic powder gun - complete, positive polarity 393 576

Gun cable - complete, 20 m (65,61 ft), 393 827

OptiGun 2-A(X) Automatic powder gun Electrical data

Nominal input voltage 10 V eff.

Nominal output voltage 98 kV

Polarity negative(option: positive)

Max. output current 100 microampère

Cascade 12 stages

Ignition protection Type A acc. EN 50177*

Type B

Dimensions

OptiGun 2-A(X)

OptiGun 2-A weight 670 g / 1,48 pounds (740 g /1,63 pounds with Super-

Corona ring)

OptiGun 2-AX weight (depending on gun length

The OptiGun 2-A(X) Automatic powder gun can be easily dismantled and is therefore maintenance and repair-friendly.

Continuous, tightly sealed gun body with separate channels for cascade and rinsing air

Continuous guided powder tube, self-sealing

Quickly dismantlable SuperCorona ring

Powder tube coupling with quick-release fastener

Covered hose and cable ducting

Excellent access to the connections due to snap lock

Simple convertion to a quick color change gun (powder tube and gun fixture tube)

Same nozzles and extensions as EasySelect manual gun

Easily dismantlable by a few hand movements, therefore very easy to service

Few wear parts (powder tube, nozzle and SuperCorona)

Self-sealing powder tube (housing tube seat)

Easily removable cascade because free of grease, with integrated current limiting resistors

Spring loaded contact between cascade and contact pin
