Versa-Spray II Manual Gun Lightweight Lance Extensions

Versa-Spray II Manual Gun Lightweight Lance Extensions

Lightweight lance extension for Versa-Spray II manual powder gun:

150mm lance extension, code: 233469

300mm lance extension, code: 233468

450mm lance extension, code: 233455

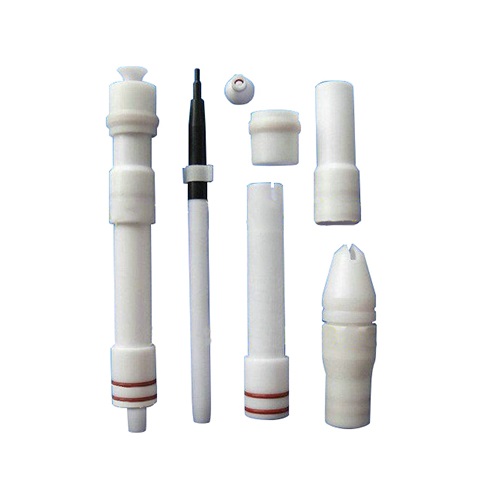

Lance Extension with Conical Nozzle & Flat Nozzle

Vantage Lance Extension Parts

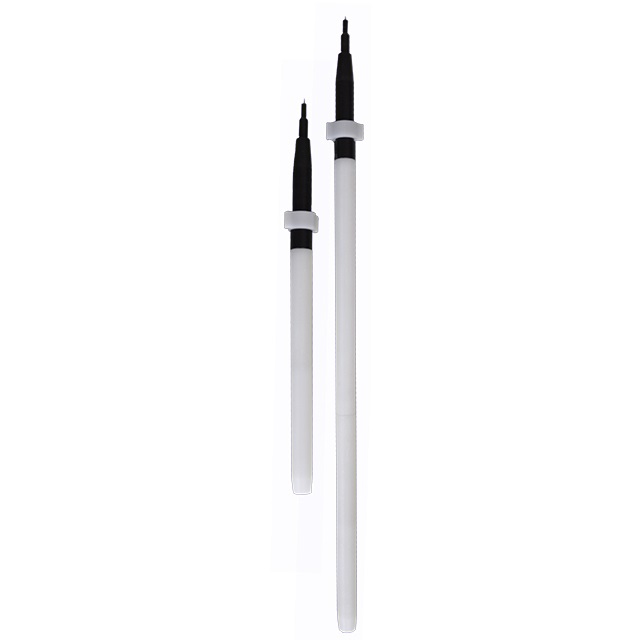

Vantage Lance Electrode assembly

Versa-Spray II Manual Gun Lance Extension Parts List

— 233469 Lightweight lance extension, 150 mm

— 233468 Lightweight lance extension, 300 mm

— 233455 Lightweight lance extension, 450 mm

1 233467 Tube, 150 mm

1 233466 Tube, 300 mm

1 233454 Tube, 450 mm

2 941181 O-ring, silicone

3 160066 Electrode assembly, lance, 150 mm

3 160068 Electrode assembly, lance, 300 mm

3 233451 Electrode assembly, lance, 450 mm

4 170277 Service kit, lance resistor and electrode support

5 160020 Sleeving, contact

6 160021 Link, adapter

7 233462 Support, cable well

8 233461 Adapter, nozzle, w/O-rings

9 940203 O-ring, silicone

10 233459 Adjuster, pattern, w/O-ring

11 941193 O-ring, silicone

12 173138 Deflector, 19 mm, flat, Tivar, w/O-ring

13 940084 O-ring, silicone

14 233456 Adapter, nozzle, flat spray, w/O-rings

15 940203 O-ring, silicone
