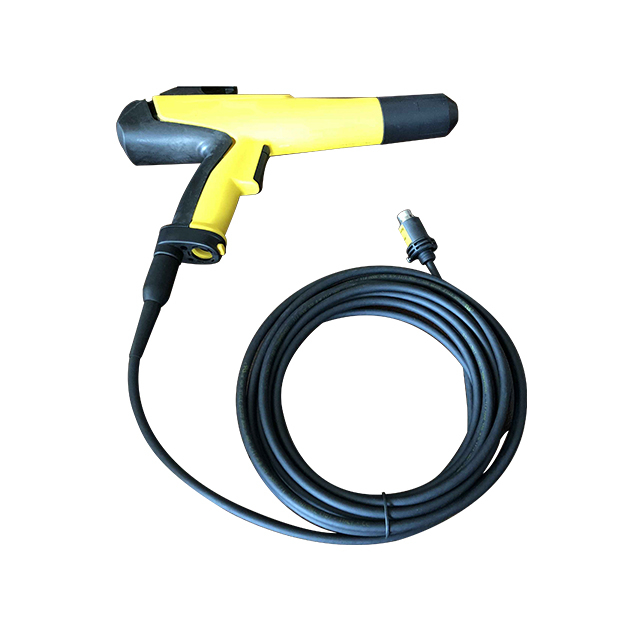

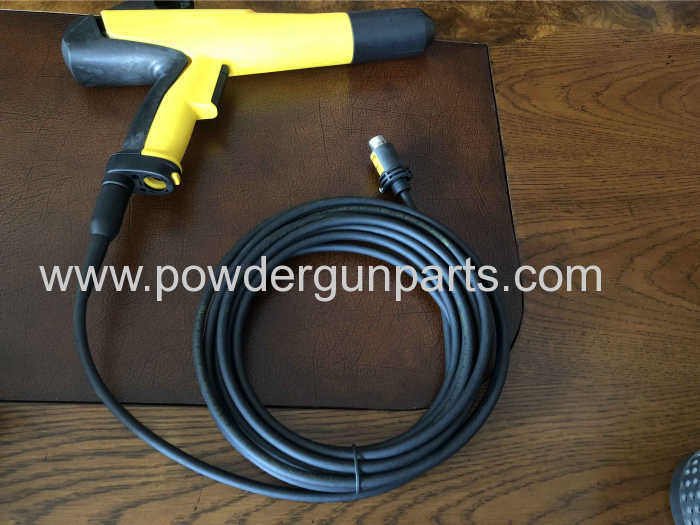

X1 Manual Powder Spray Gun Replacement

Wagner X1 Manual Spray Gun Replacement, PEM X1 Corona Powder Gun

Technical Data:

Length 335 mm/ 13 inch

Weight 490 g

Maximum Powder Output  450g (15.8 oz) /min

The new manual gun PEM-X1 sets the standard and trend for all kinds of surfaces used today in powder coating. This new generation gun improves perfection and precision even further. The product philosophy combines a balanced finesse on all levels with long life expectancy and optimal handling. Well-balanced ergonomics are based on experience!

■ Weight

While maintaining its robust design, the PEM-X1 weighs only 17 oz.

■ Balance

Perfectly balanced, the PEM-X1 gun is fl exible and reduces fatigue.

■ Ergonomics

The integrated remote control allows for a quick adjustment of the powder output. Via a double-click on the trigger, switching between, recipes is simple and fast.

■ Nozzles

The new nozzle concept not only provides a perfect powder cloud, but also an improved finished quality. The flat spray can easily be adjusted for particular coating requirements using a sliding ring.

PEM-X1 Manual Spray Gun Spare Parts

Order No. Designation

2334277 Cable assembly, PEM-X1 ET

 2324123 Powder tube, PEM-X1 ET

 2334276 Trigger, PEM-X1/PEM-X1 CG ET

 2332540 Housing, PEM-X1 ET

 2334275 Hand gun cable, PEM-X1 ET 6 m; 19.69 ft

 2334568 Hand gun cable, PEM-X1 ET 15 m; 49.21 ft

 2322761 Hose nipple, D10-D12, complete

 2334341 O-ring set, PEM-X1 ET

 2334316 Screw set, PEM-X1 ET, consists of:

 -- Cylinder head screw with hexalobular socket

 -- Plastic self-tapping screw

 -- PT screw fi llister head Torx

 2321978 Hose nipple

 2320464 Union nut, X1

 2321976 Flat spray nozzle, X1, complete

 2322529 Electrode holder, X1 F ET

 2320488 Replacement protective wedge X1

 2324205 Wedge tool, X1

 2320330 Gun hook, X1 ET

 2324136 Negative cascade, X1 ET

 Electrode holder X1 R with nozzle (with PEM-X1 R design)
