GM03 Manual Powder Gun Spare Parts (Gema NON OEM parts)

- Supply whole set GM03 replacement gun and spare parts.
- Factory direct sale powder coating parts with reliable quality and competitive price!
- Delivery time: 1-2days, Delivery by Express: TNT, FEDX, DHL

Model:
GM03 Parts

Availability:

Quantity:



Inquire Add to Basket

GM03 Manual Powder Gun Spare Parts (Gema NON OEM parts)

Product Description

GM03 Manual Gun Parts, Powder Coating Gun Replacement Parts (Gema NON OEM Parts)

Supply GM03 replacement spare parts that ensure optimum application quality, powder usage, and running efficiency of your equipment.

We have gained 10 years expertise in offering a all kinds of powder coating parts. Every product being offered is manufactured in compliance with the quality standards using best raw material, importantly at the most reasonable prices.

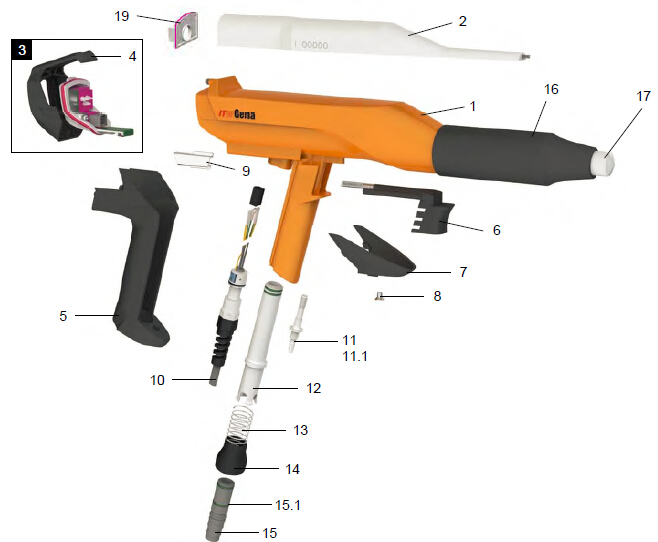

gema GM03 powder coating parts

Negative polarity, gun cable 2 m 1007 971
Positive polarity, gun cable 2 m 1007 974
Negative polarity, gun cable 6 m 1007 972
Positive polarity, gun cable 6 m 1007 975
Negative polarity, gun cable 12 m 1007 973
Positive polarity, gun cable 12 m 1007 968
1 Gun body 1007 220
2 Cascade - complete, negative polarity 1007 231
Cascade - complete, positive polarity 1007 232
3 Print holder - complete 1007 216
4 End plate with hook 1007 217
5 Grip end plate - complete 1007 961
6 Trigger - complete 1007 213
7 Trigger cover 1007 212
8 Countersunk-head screw - M4x6 mm 1000 845
9 SuperCorona holder 1007 238
10 Gun cable 2 m - complete 1007 963
Gun cable 6 m - complete 1007 964
Gun cable 12 m - complete 1007 965
11 Rinsing air connection 1000 804
11.1 Rinsing air hose 100 854*
12 Powder tube - complete 1007 958 #
13 Compression spring 1001 488
14 Clip ring 1007 960
15 Hose connection Ø 11-12 mm - complete (incl. pos. 15.1) 1001 340 #
Hose connection Ø 9-10 mm - complete (incl. pos. 15.1) 1002 030 #
15.1 O ring for pos 15 1000 822 #
16 Threaded sleeve (see corresponding Spare parts list)
17 Nozzle (see corresponding Spare parts list)
18 SuperCorona PC05 1008 165#
19 Cascade space seal 1007 635#

GM03 Flat Jet Nozzles

NF20 - complete 1007 931#(profiles, flat parts)
Electrode holder - complete 1007 683#
Flat jet nozzle NF20 1010 090#

NF21- complete 1007 932# (complex profiles and depressions)
Electrode holder - complete 1007 683#
Flat jet nozzle NF21 1007 935#

NF24- complete 1008 142# (large surfaces)
Electrode holder - complete 1007 683#
Flat jet nozzle NF21 1008 147#

NF27 -complete 1010 754# (standard for GA03)
Electrode holder - complete 1007 683#
Flat jet nozzle NF27 1010 752#

GM03 Round Spray Nozzles (including deflectros)

NS04- complete 1008 150# (large surfaces)
Electrode holder - complete 1008 152#
Flat jet nozzle 1008 151#

GM03 Extension Nozzles

NF25- complete 1007 743# Suitable for Profiles/Flat Parts
Electrode holder - complete 1007 684#
Flat jet nozzle NF25 1007 735#

NF26- complete 1007 744# Suitable for Complex Profiles and depressions
Electrode holder - complete 1007 684#
Flat jet nozzle NF26 1007 742#

NS09 - complete 1008 259#
Electrode holder - complete 1008 258#
Round jet nozzle NS09 1008 259#
