145558 Vantage 32mm Conical Nozzles

Replacement parts for vantage manual spray gun, NON OEM, can be interchangeable with original vantage parts. Factory-direct powder coating parts with much cheaper price

Quantity:

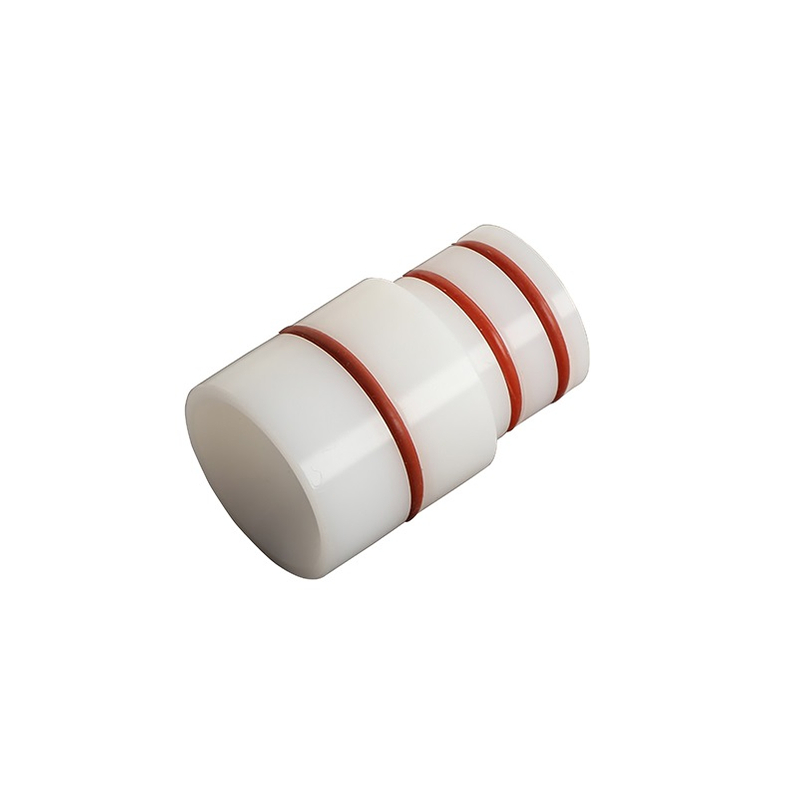

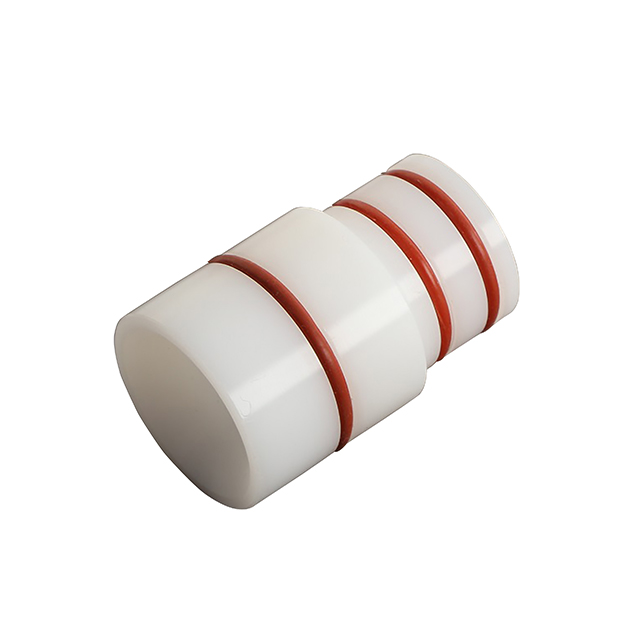

Vantage 32mm Conical Nozzles, Nordson Original Code: 145558

vantage manual spray gun 32mm conical nozzle. We supply nordson replacements with same quality but more competitive prce!

vantage conical nozzle

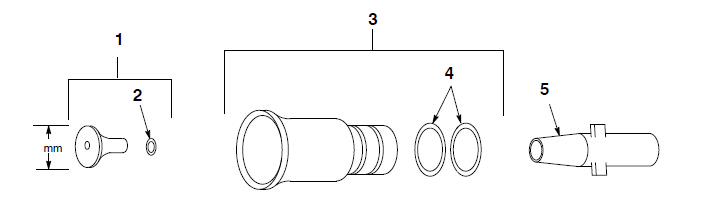

Vantage 32mm Conical Nozzle Kit

vantage 32mm conical nozzle

145559 Service kit, nozzle, 32 mm
1 133734  Deflector, 26-mm, w/O-ring,
2 940084  O-ring, silicone A
3 144759  Adjuster, pattern, 32 mm
4 145558  Nozzle, 32-mm, w/O-rings,
5 941205  O-ring, silicone
6 941181  O-ring, silicone
7 132348  Sleeve, wear, conical

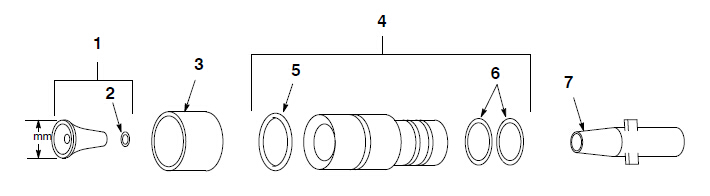

Vantage 45mm Conical Nozzle Kit

vantage 45mm conical nozzle

144760 Service kit, nozzle, 45 mm
1 249233 Deflector, 38-mm, w/O-ring
2 940084 O-ring, silicone
3 144789 Nozzle, 45-mm dia, w/Orings
4 941181 O-ring, silicone
5 132348 Sleeve, wear, conical

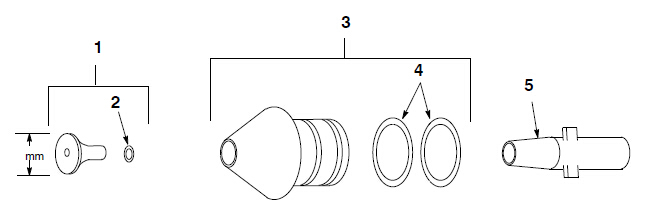

Vantage Short Conical Nozzle Kit


vantage short conical nozzle


1 173138 Deflector, 19-mm, w/O-ring
1 173141 Deflector, 26-mm, w/O-ring
2 940084  O-ring, silicone
3 173139 Nozzle, short, w/Orings
4 941181  O-ring, silicone
5 132348 Sleeve, wear, conical
