Vantage Manual Spray Gun Service Kits

Vantage Manual Spray Gun Service Kits

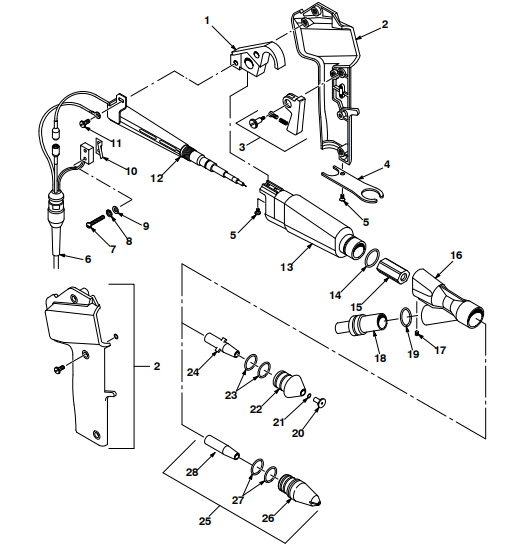

— 1069820 Gun, manual, Vantage, 6 meter

1 125616 Hanger, handgun, modular

2 160103 Service kit, handle A

3 160104 Service kit, trigger A

4 132345 Bracket, cable/tube

5 982098 Screw, fillet head, slotted

6 - - - - - - Cable, manual gun, 6 mt A

7 1070246 Screw, pan head

8 983113 Washer, lock, e, split, 2

9 983510 Washer, flat, e

10 132336 Actuator, switch

11 982327 Screw, chez head, slotted

12 1014038 Kit, multiplier, with resistor probe A

13 125613 Extension

14 940243 O-ring, silicone

15 984165 Nut, cable retainer

16 125612 Body, inlet, powder

17 982455 Screw, set

18 134386 Adapter, hose, w/O-ring

19 940163 O-ring, silicone

20 173138 Defl, 19 mm, w/O-ring

21 940084 O-ring, silicone.

22 173139 Nozzle, short, with O-ring

23 941181 O-ring, silicone

24 132348 Sleeve, wear, conical

25 141044 Service kit, flat spray nozzle, 4 mm

26 141045 Nozzle, flat spray, 4 mm, with O-ring

27 941181 O-ring, silicone

28 134385 Sleeve, wear, flat spray, with O-ring
