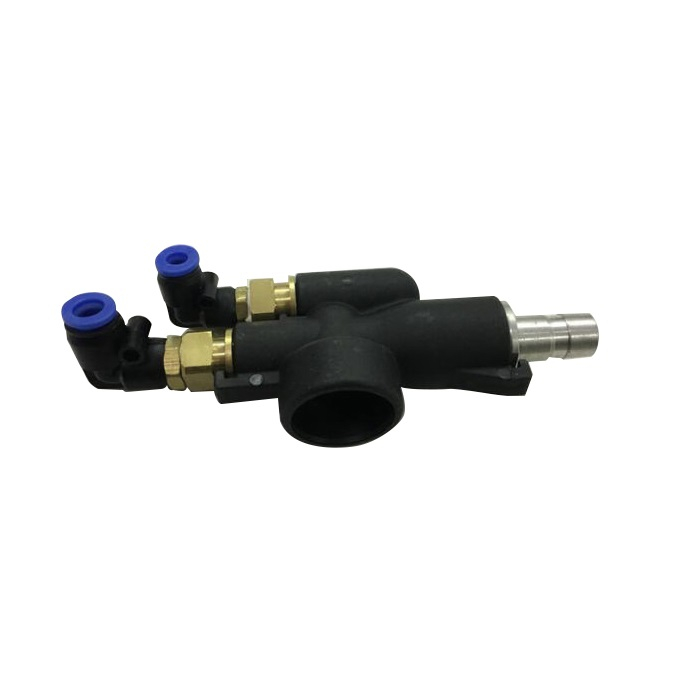

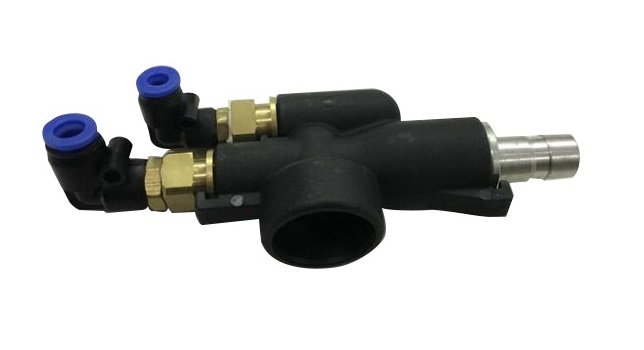

8-mm Modular Powder Feed Pump for Corona Spray Guns

Purgeable 8-mm Modular Powder Feed Pump for Corona Spray Guns

Our powder feed pumps being offered is manufactured in compliance with the set industry quality standards using high quality raw material that increases resistance to wear and powder impact fusion. The pump and parts produced in our factory ensures same performance as original but supplied with much more favorable price!

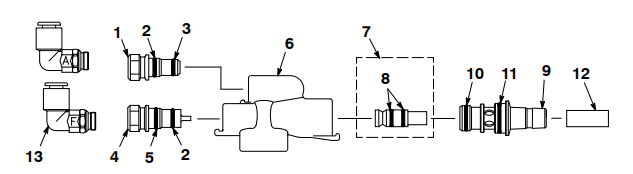

8-mm Modular Powder Feed Pump Parts

1 344239 Atomizing air nozzle

2 940129 O-ring, silicone, conductive

3 940010 O-ring, silicone, conductive

4 344238 Flow air nozzle

5 940207 O-ring, silicone, conductive

6 224726 Modular pump body

7 225547 Throat, 0.188 in. ID, Tivar, w/O-rings

7 225547 Throat, 0.188 in. ID, PTFE, w/O-rings

7 225548 Throat, 0.213 in. ID, PTFE, w/O-rings

7 225546 Throat, 0.213 in. ID, Tivar, w/O-rings

8 940126 O-ring, silicone

9 344241 Throat holder DS

10 940015 O-ring, silicone, conductive

11 940177 O-ring, silicone, conductive

12 224736 Wear tube

13 972276 Elbow, male, 8 mm tube
