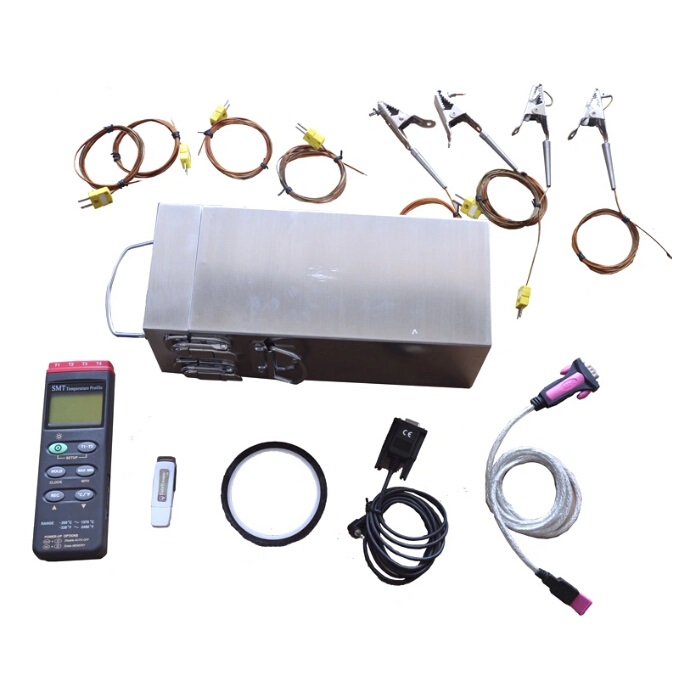

Temperature Profiling Systems are designed to travel through an oven with the product that is being cured, measuring the true product temperature throughout the process. At the heart of the system the data logger, which records the temperature profile of the product, is protected from the heat of the oven by a thermal barrier.
Mainly for the baking temperature is less than 300 degrees each powder baking, paint baking.
With small size, light weight, superior ease of use, thermal performance characteristics
Precisely reflect the maximum, minimum, average temperature and standard deviation
SMT-4 Temperature Tracker Technical Parameters :
Number of Channels: 4 channels
Sensor: K thermocouple
Time: One hour at 250℃ using an incubator (110x125x300mm).
Incubator Dimension: Width110 x Height125 x Length300mm
RAM: Each channel can record and store 16,000 data
Sampling rate: 1s, 2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, 1min and other optional
Computer Requirements: windows 98, 2000, XP, etc.
Temperature Profiling Systems are designed to travel through an oven with the product that is being cured, measuring the true product temperature throughout the process. At the heart of the system the data logger, which records the temperature profile of the product, is protected from the heat of the oven by a thermal barrier.
Mainly for the baking temperature is less than 300 degrees each powder baking, paint baking.
With small size, light weight, superior ease of use, thermal performance characteristics
Precisely reflect the maximum, minimum, average temperature and standard deviation
SMT-4 Temperature Tracker Technical Parameters :
Number of Channels: 4 channels
Sensor: K thermocouple
Time: One hour at 250℃ using an incubator (110x125x300mm).
Incubator Dimension: Width110 x Height125 x Length300mm
RAM: Each channel can record and store 16,000 data
Sampling rate: 1s, 2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, 1min and other optional
Computer Requirements: windows 98, 2000, XP, etc.
