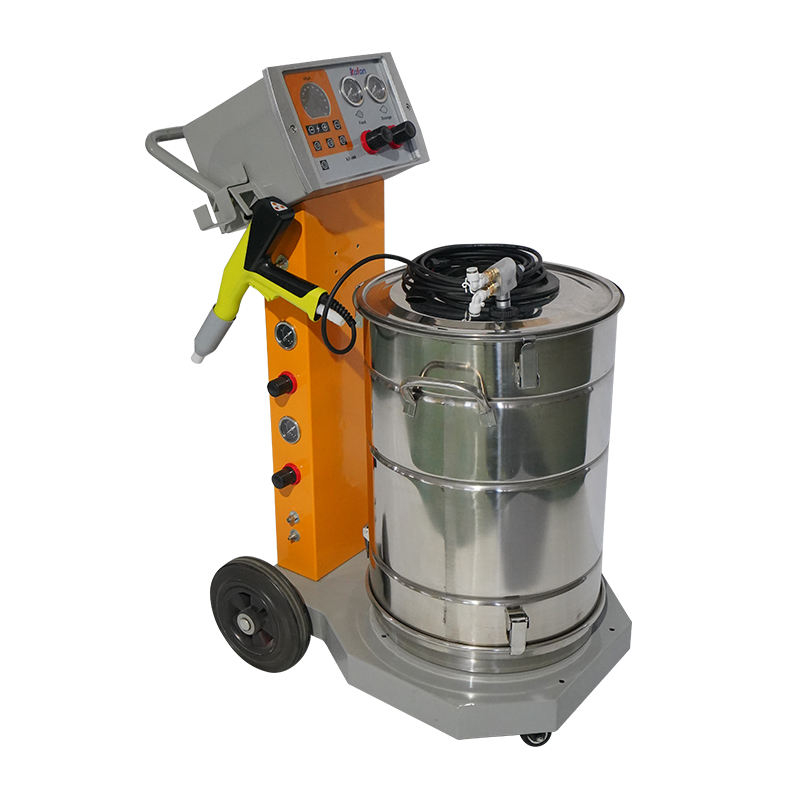

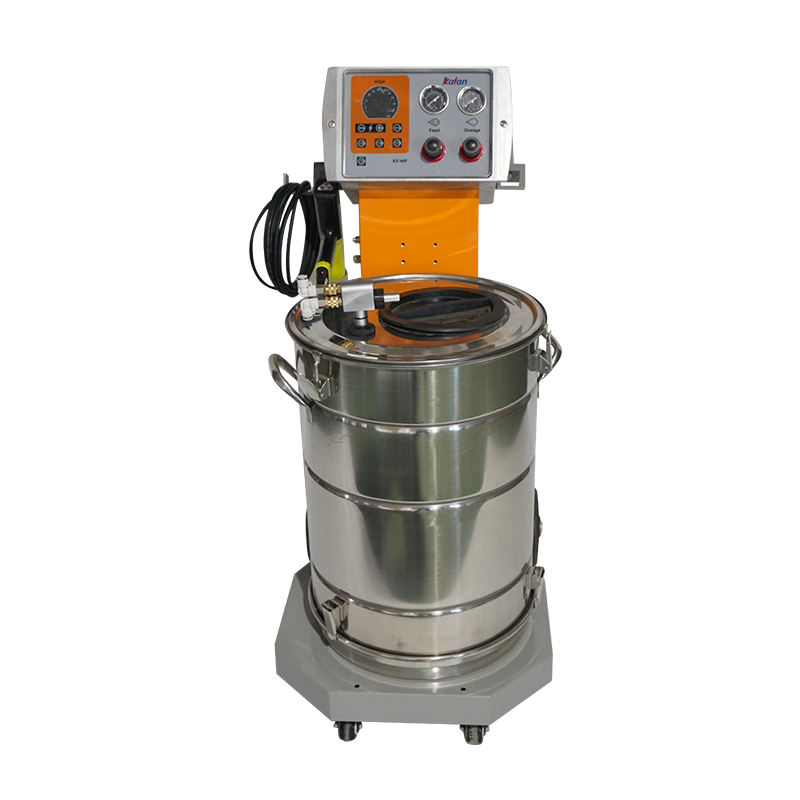

KF-669
| Quantity: | |
|---|---|
The innovative, inexpensive KF-669 powder coating machine is easy and powerful for all kinds of metal objects with quality results. For various commercial and industrial applications, this machine forms a uniform thickness and amazing adhesion as well as reduce the powder waste. The reliable quality ensures minimum operation cost or maintenance costs.
- The intelligent controller with 0-100kV adjustable voltage is ideal for powder coating objects with different shapes
- Flexibile adjustment of voltage and current with dashboard display, easy adjustment of the powder output and atomization with knobs.
- There are one-touch operation buttons and user-friendly operating interface for easily setting parameters.
Offers beginners 3 pre-set application programs, use the touch keys to select any of the electrostatic coating processes
- Flat mode, suitable simple panel shaped parts.
- Corner mode, suitable for coating deep corner.
- Re-coat mode, suitable for repeat coating which has already been coated.
- 100KV High Voltage powder spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.
-- Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.
- We supply full array of nozzle assortment, including round nozzles with various deflectors, flat nozzles, and extension nozzles.
- Round and flat spray nozzles are suitable for most common workparts, nozzles with an extension is easier to penetrate deep corners. Users can change freely between different types to meet their needs.
- Size: D36xH52cm, Capacity: 50-60 pounds powders.

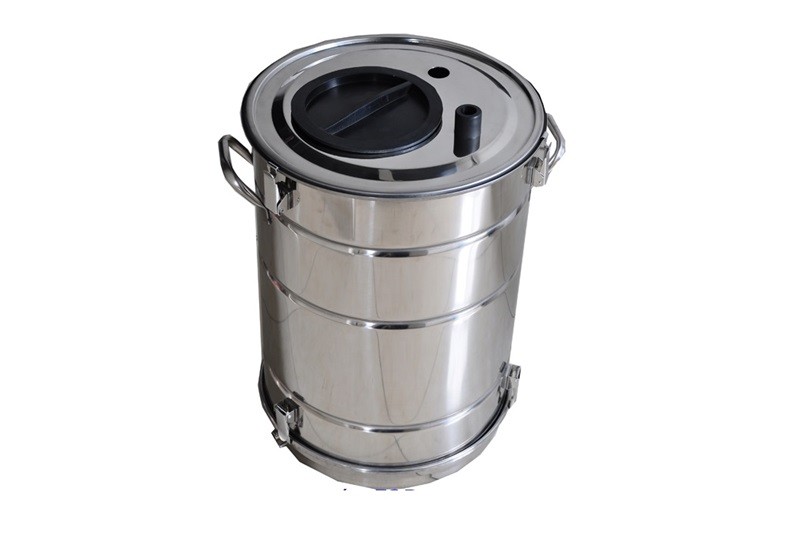

- The powder hopper with fluidizing plate prevents the powder block, ensures smooth powder flow.
- It is also well sealed to keep the powders from contaminants and damp.
KF-669 Electrostatic Powder Coating Machine Parameters
| Model | KF-669 |
| Power range | 220V/110V (can be customized) |
| Frequency | 50HZ/60HZ |
| Temperature range in use | -10 ℃+50 ℃ |
| Gun Weight | 500G |
| Rated Output Voltage | 24V DC |
| Maximum Output Current | 180Ua(max) |
| Maximum Powder Injection | 600g/min |
| Polarity | negative (-) |
