KF-669T-H
| Quantity: | |
|---|---|

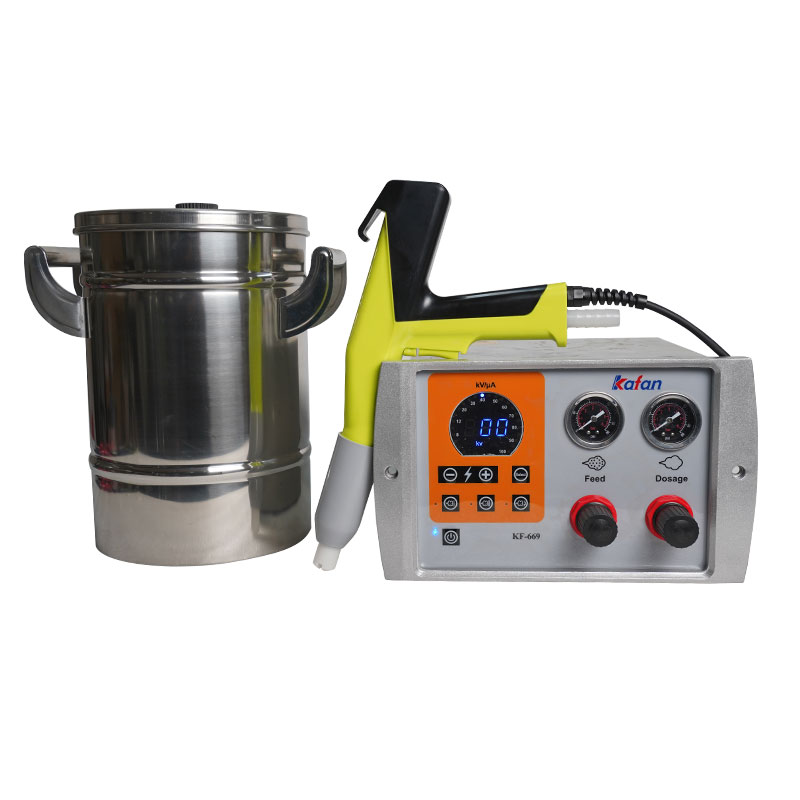

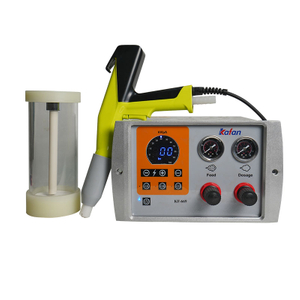

COLO-669T-H small electrostatic powder coating machine with 10 lbs portable fluidizing hopper supports constant production of small scales, ideal for powder coating mini parts, sample testing or laboratory use, with advantages of simple cleaning and fast color change. It applies the easiest spray method to create perfect finish for an kinds of parts.

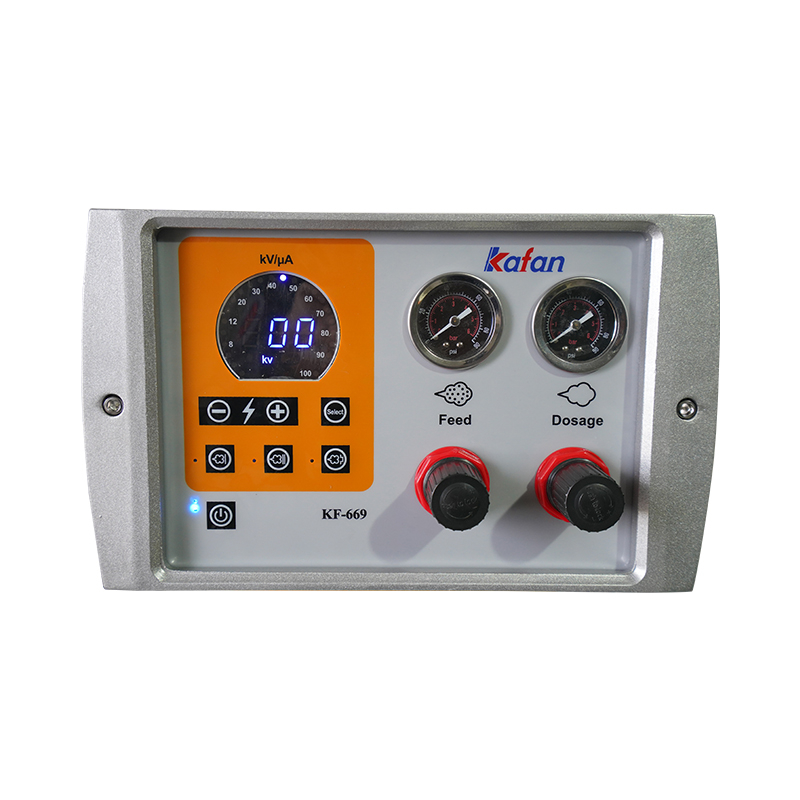

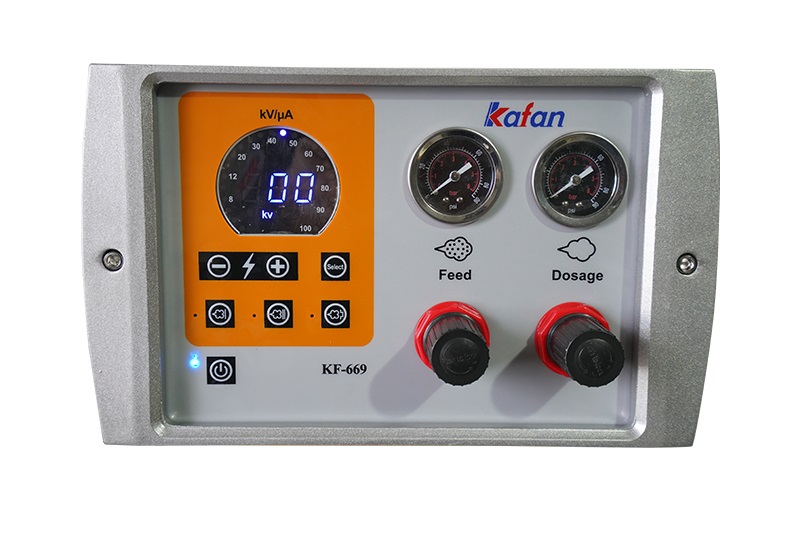

- The intelligent controller with 0-100kV adjustable voltage is ideal for powder coating objects with different shapes
- Flexibile adjustment of voltage and current with dashboard display, easy adjustment of the powder output and atomization with knobs.
- There are one-touch operation buttons and user-friendly operating interface for easily setting parameters.

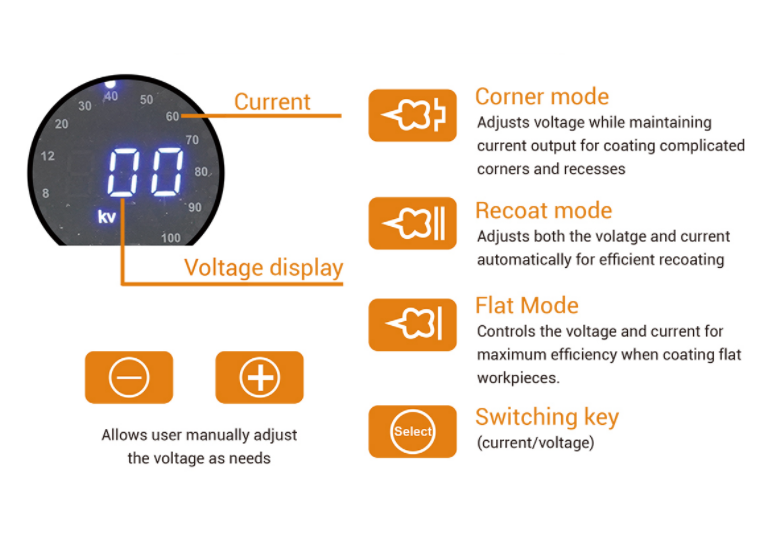

Offers beginners 3 pre-set application programs, use the touch keys to select any of the electrostatic coating processes
- Flat mode, suitable simple panel shaped parts.
- Corner mode, suitable for coating deep corner.
- Re-coat mode, suitable for repeat coating which has already been coated.

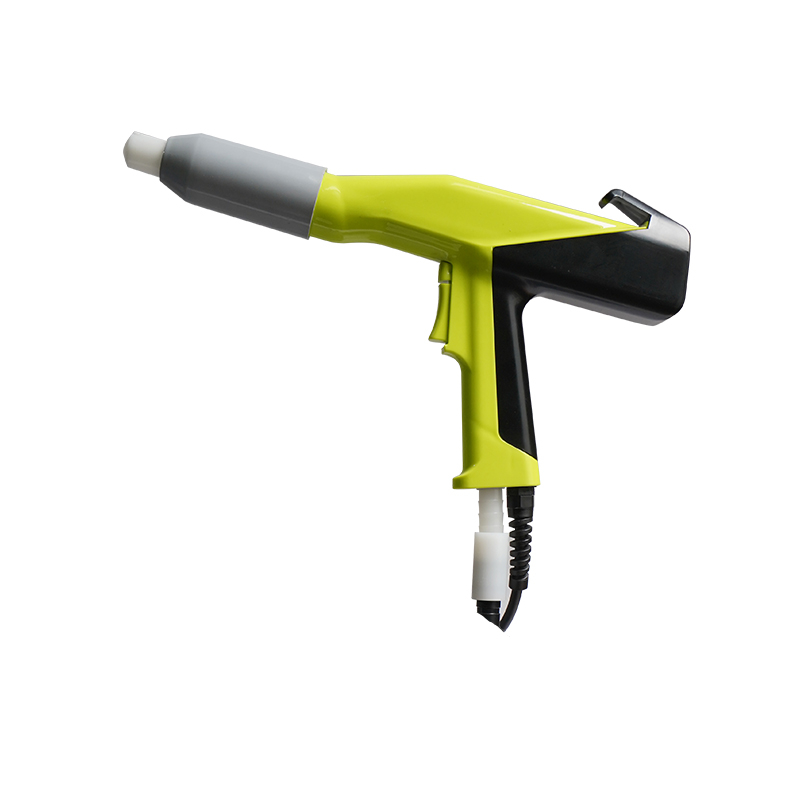

- 100KV High Voltage powder spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.
-- Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.

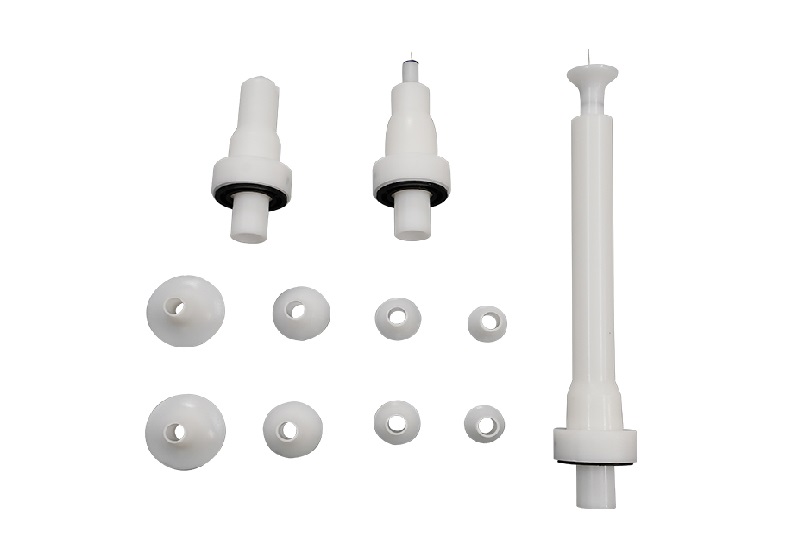

- We supply full array of nozzle assortment, including round nozzles with various deflectors, flat nozzles, and extension nozzles.
- Round and flat spray nozzles are suitable for most common workparts, nozzles with an extension is easier to penetrate deep corners. Users can change freely between different types to meet their needs.

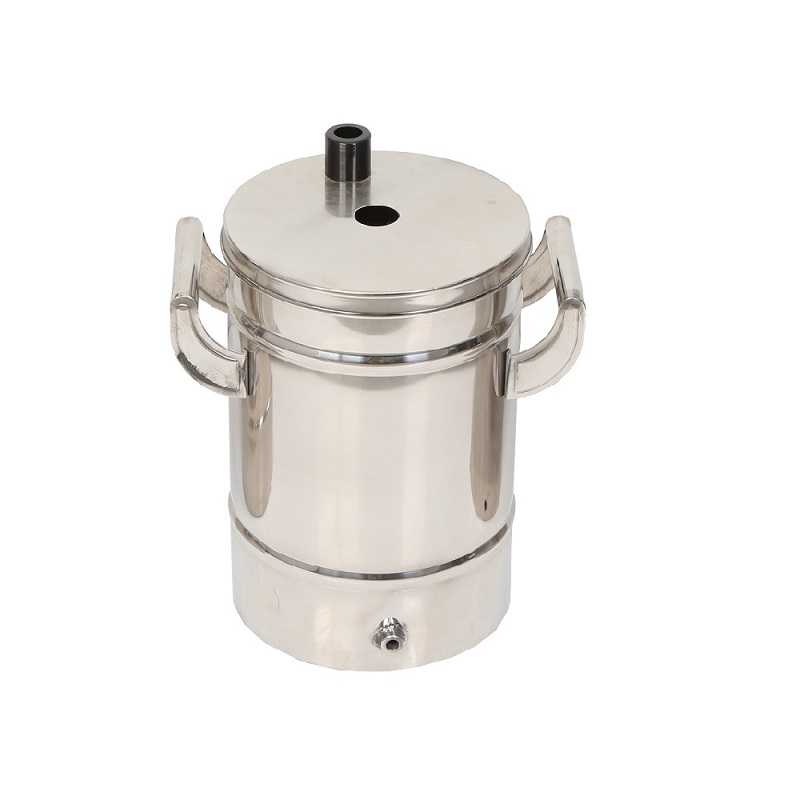

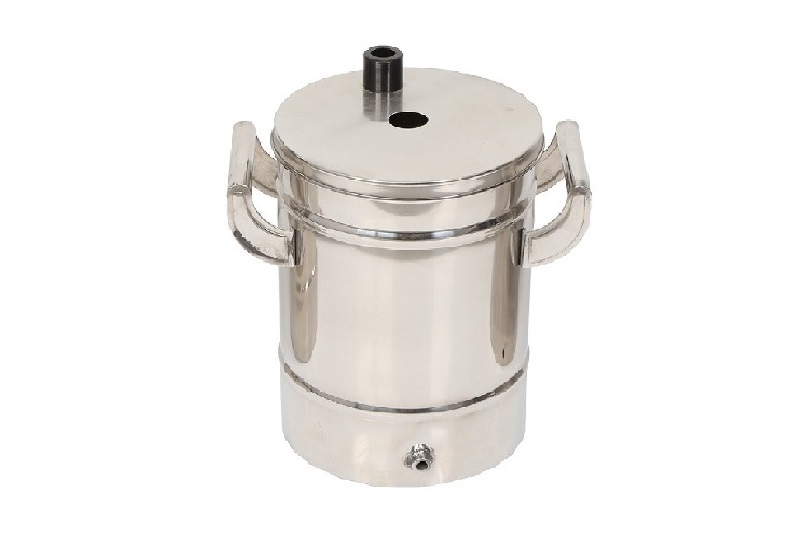

- Size: D20xH30cm, Capacity: 10 pounds powders.
- Stainless steel hopper is easy for cleaning and enables a very quick color change.
- Fully assembled with fluidizing plate and powder suction tube, which allows powders easily to be conveyed from the hopper to the gun with a high degree of uniformity and consistency.
- Powders stored in a well-sealed hopper will maintain a dry condition, keep the powders from contaminants and damp.
KF-669 Electrostatic Powder Coating Machine Parameters
| Model | KF-669T-H |
| Power range | 220V/110V (can be customized) |
| Frequency | 50HZ/60HZ |
| Temperature range in use | -10 ℃+50 ℃ |
| Gun Weight | 500G |
| Rated Output Voltage | 24V DC |
| Maximum Output Current | 180Ua(max) |
| Maximum Powder Injection | 600g/min |
| Polarity | negative (-) |
