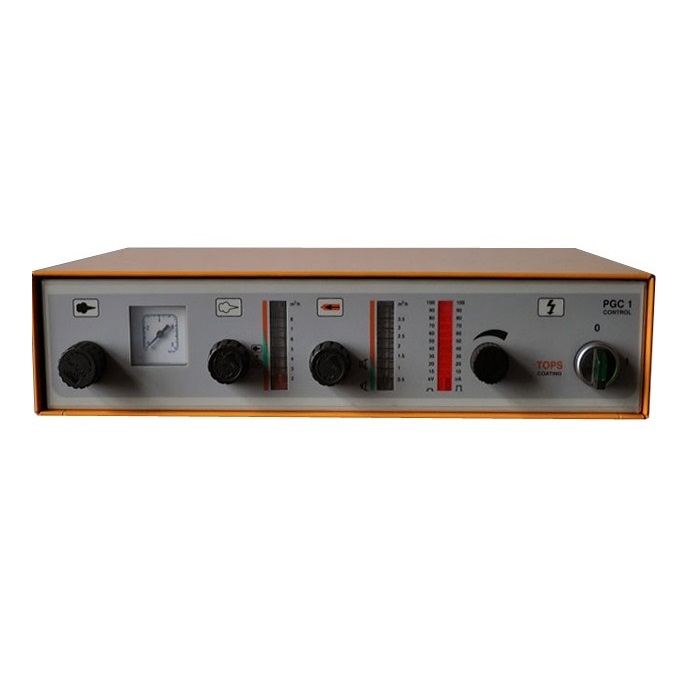

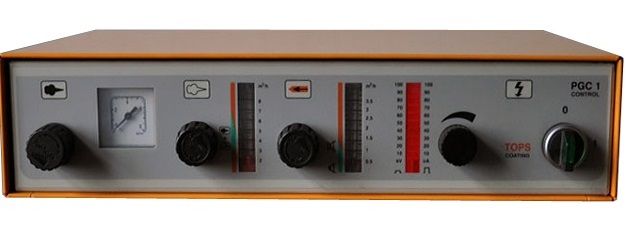

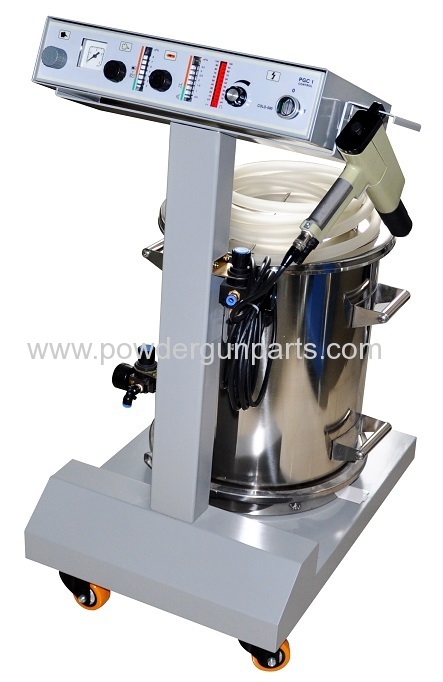

PGC1 Powder Gun Control Electrical data
Single-phase AC
Selectable voltage : 100 V, 110 V, 120 V, 200 V, 230 V or 240 V
Tolerance (at 230 V): ±10%, based on 230 V (198 V-253 V)
Voltage selection is made on the inside of the electrical unit by resoldering the tag of the transformer.
The value of the fuse for 100, 110, and 120 V is 1,0 AT and for the higher voltages is 0,5 AT.
The equipment is delivered for operation at 230V from the factory.
Frequency : 50/60 Hz
Connected load : 50 VA
Rated output voltage (to gun) : 10 V
Rated output current (to gun) : 1.2 VA
Type of protection : IP 54
Temperature range : +10o C to +40o C (+50o F to +104o F)
Approval : EN 50 050
FM No J. I. OW 7 A 6.AE (7264)
Date tested 10/1993.
PTB test No 91.C.9102
Date tested 10/1991.
Specification of the external control signal :
Nominal voltage : 24 VDC
High-Voltage - On : 0.... 2,5 V
High Voltage - Off : 16.... 30 V (max. 35 V for t <100 ms)
Input current : 12 mA (typically at 24 V)
The control signal input is galvanically isolated, and protected from reversed polarity connection
over the whole input voltage range.
Pneumatic data
Main compressed air input connection thread : 1/4" B.S.P (female)
Maximum input pressure: 10 bar
Minimum input pressure: 5 bar
Maximum water vapour content of compressed air: 1.3 g/m3
Maximum oil vapour content of compressed air: 0.1 [mg/kg]
Dimensions
Width : 435 mm
Depth : 300 mm
Height : 96 mm
Weight : 12 k
