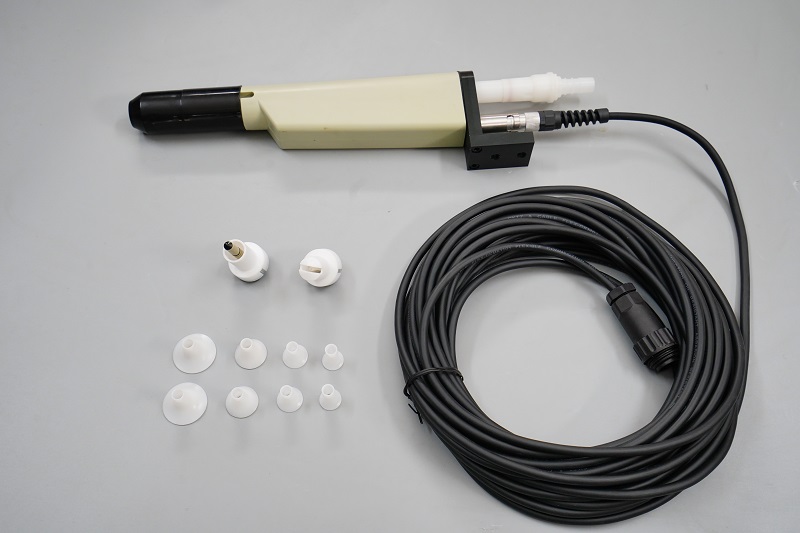

PG 2-A Automatic Powder Coating Gun

PG 2-A Automatic Powder Gun

Original Code: 361 690#

Gema Replacement Parts

The extremely lightweight PG 2-A Automatic powder gun with an integrated high-voltage generator has a very high penetration power and a high, constant transfer efficiency because of its patented air-cleaned central electrode. The gun can be dismantled, making it easy to maintain and repair.

Technical data of the PG 2-A and PG 2-AX Automatic Powder Guns

Rated input voltage: 10 V eff.
Frequency: 17 kHz.
Rated output voltage: 98 kV.
Polarity: Negative (Positive - Option).
Maximum output current: 100 μA.

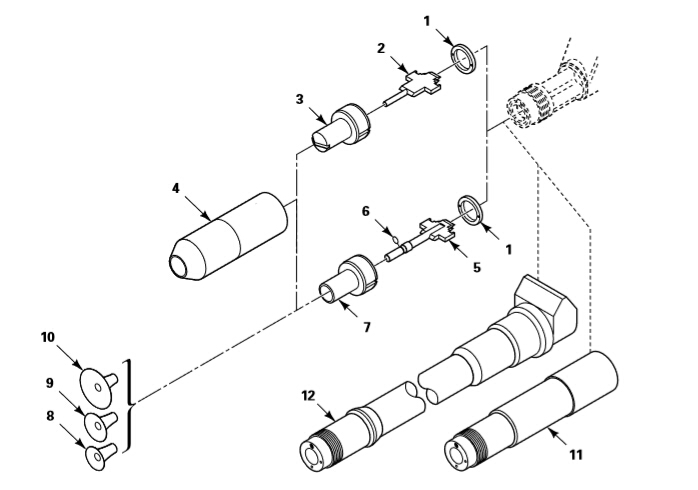

PG 2-A and PG 2-AX Automatic Powder Guns Wearing Parts List

Flat Jet Nozzle Set (items 1, 2, 3) 319 350

Round Jet Nozzle Set (items 1, 5, 6, 7) 347 337

1 Contact ring 318 760

2 Electrode holder - complete (Flat Jet Nozzle) 318 779#

3 Flat Jet Nozzle 318 744#

4 Threaded sleeve 328 774

5 Electrode holder - complete (Round Jet Nozzle) 347 329#

6 O-Ring - ø 5 x 1 mm 231 606#

7 Round Jet Nozzle 331 287#

8 Deflector - ø 16 mm 331 341#

9 Deflector - ø 24 mm 331 333#

10 Deflector - ø 32 mm 331 325#

11 Extention tube - 150 mm 347 310#

12 Extention tube - 300 mm 353 310#
