Round Jet Nozzle Set 351 717#

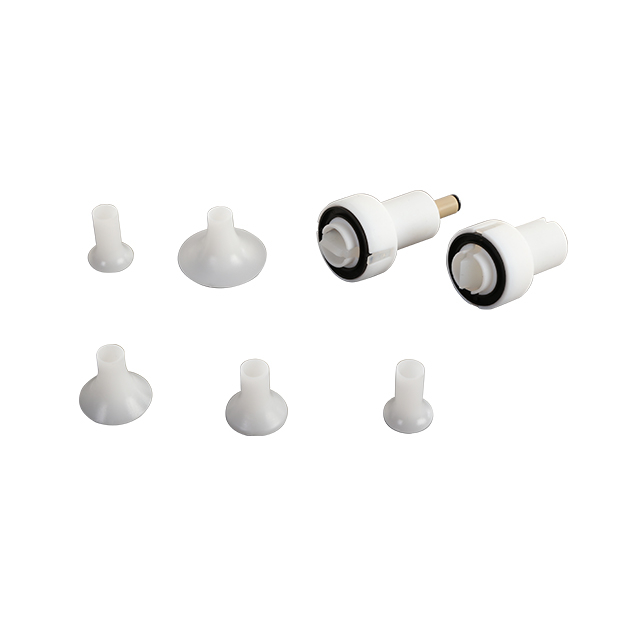

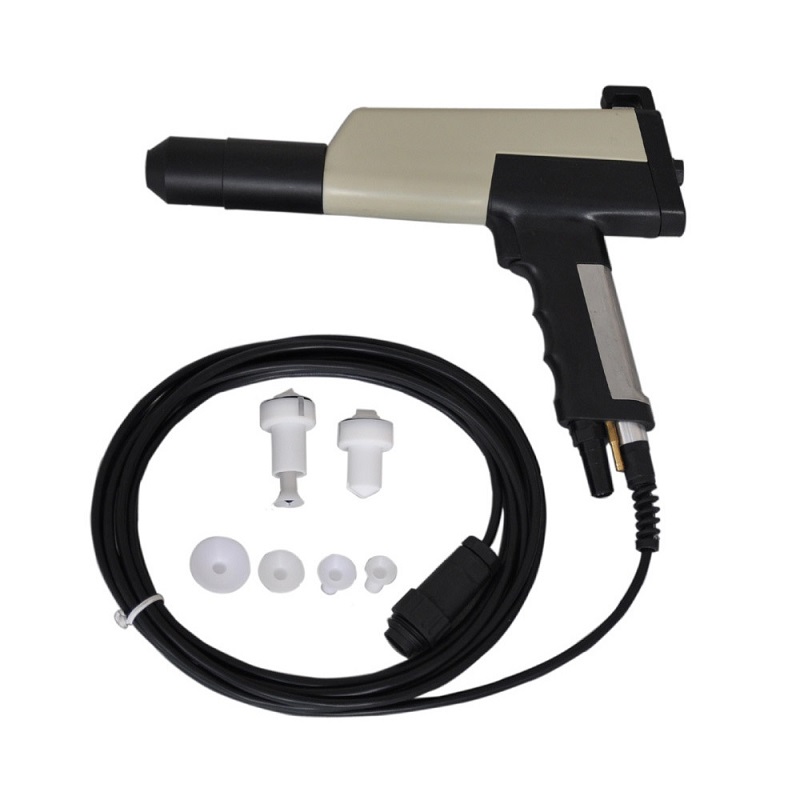

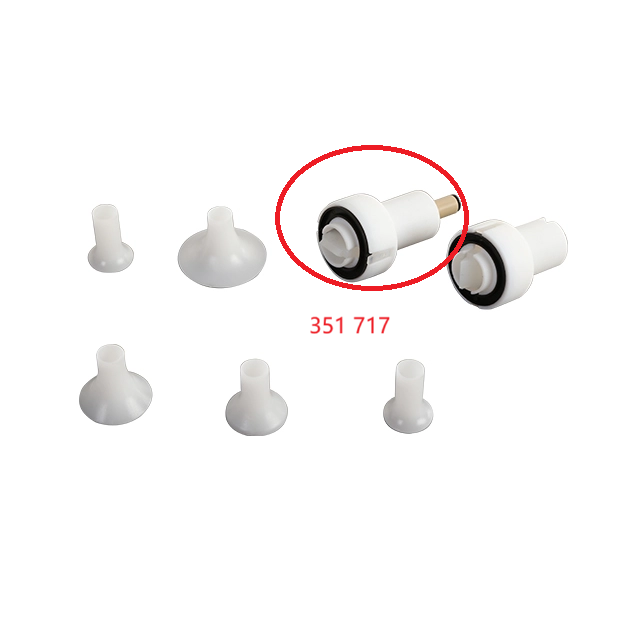

Round Jet Nozzle Set 351 717# for Gema PG1/PG2A Powder Coating Gun

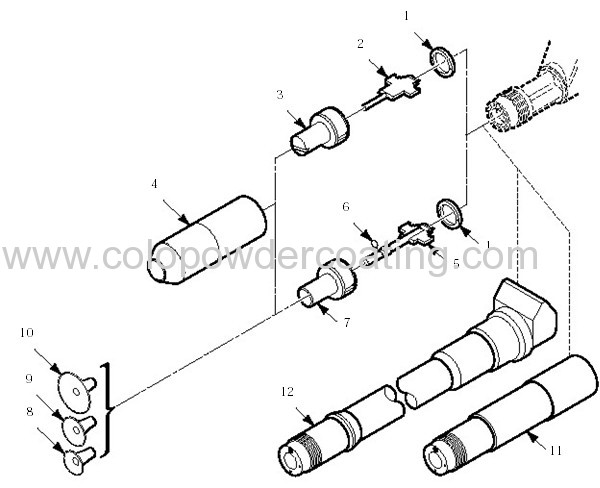

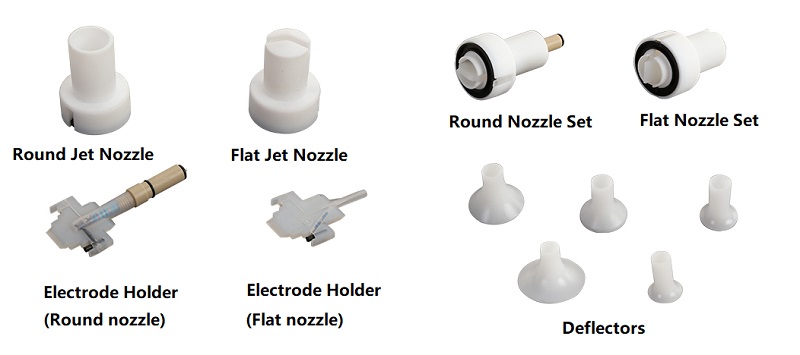

Flat Jet Nozzle Set (items 1, 2, 3) 319 350

Round Jet Nozzle Set (items 1, 5, 6, 7) 351 717

1 Contact ring 318 760

2 Electrode holder - complete (Flat Jet Nozzle - Tefzel - Standard ) 318 779#

2.1 Electrode holder - complete (Flat Jet Nozzle - PTFE) 358 126#

3 Flat Jet Nozzle 318 744#

4 Threaded sleeve 328 774

5 Electrode holder, incl. item 6 (Round Jet Nozzle - Standard ) 351 709#

5.1 Electrode holder, incl. item 6 347 329# (Round Jet Nozzle - Double electrode)

6 O-Ring - ø 5 x 1 mm 231 606#

7 Round Jet Nozzle 331 287#

8 Deflector - ø 16 mm 331 341#

9 Deflector - ø 24 mm 331 333#

10 Deflector - ø 32 mm 331 325#

11 Extension tube - 150 mm 347 310#

12 Extension tube - 300 mm 353 310#

12.1 Extension tube - 500 mm 352 500#

Other lengths on request!

Spray Nozzles Cleaning and Maintenance:

Daily or after each shift:

  - Clean the outside of the spray nozzles with compressed air, solvents or any other liquids.
  - Check the seating of the spray nozzle.
Make sure that the threaded sleeve is always tightened correctly. If the flat jet nozzle is loosely mounted, the high-voltage from the gun can "flash over" and damage the gun!

Weekly:
  - Remove the spray nozzles and clean the inside with compressed air Sintered powder accumulations should be removed.

Monthly:
  - Check the spray nozzles for wear.

Replace the flat jet nozzle if:
  - the spray pattern is no longer a perfect oval.
  - deep grooves are present in the nozzle slot, or if the wall thickness has decreased.
  - the wedge at the rear of the electrode holder is worn.

By nozzles with deflectors
  - if the wedge at the rear of the electrode holder is worn, change the electrode holder.

3. Push the electrode holder with the contact ring into the slot of the nozzle and press home.

4. Place the deflector onto the tip of the electrode holder and push it in as far as it will go.

   Do not twist the deflector!
