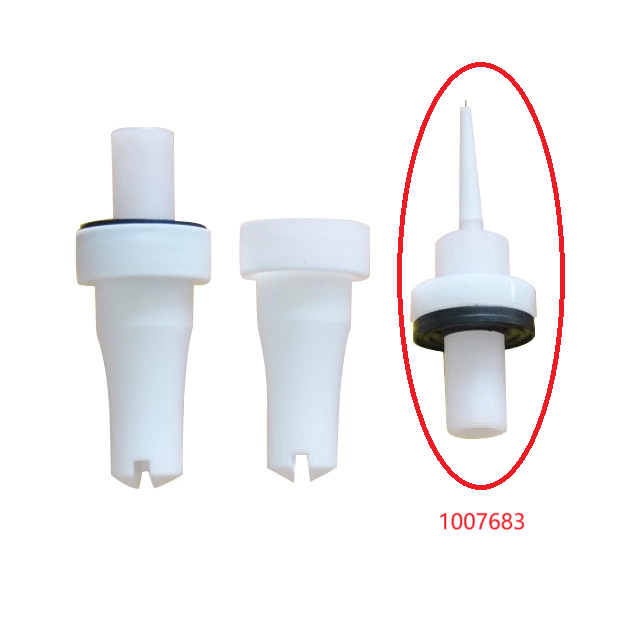

Electrode Holder 1007683, GM03 Powder Gun Flat Nozzle ( Gema NON OEM spare part)

Electrode Holder 1007 683# for Flat Spray Nozzle, GM03 Manual Powder Gun Spare Parts

"After market" replacement electrode holder for  flat spray nozzles of  GM03/GA03 powder guns, 100% interchangeable with original, made of high quality material for less wear and longer life, strictly produced consistent with the original accuracy that ensures optimal performance.

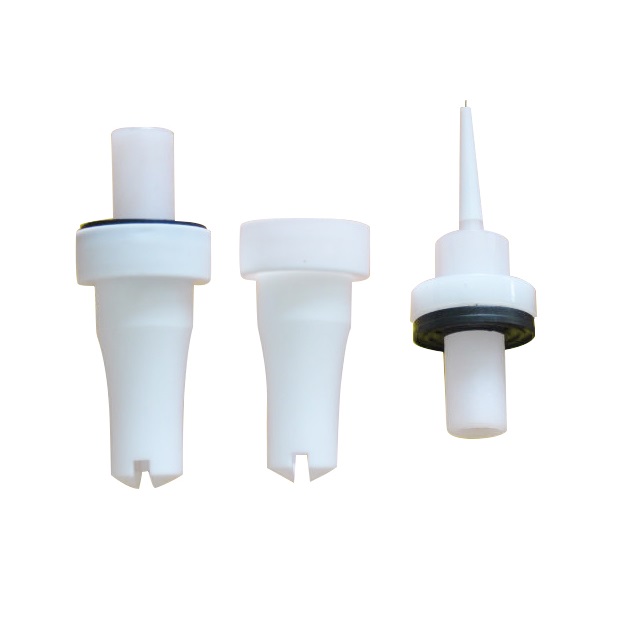

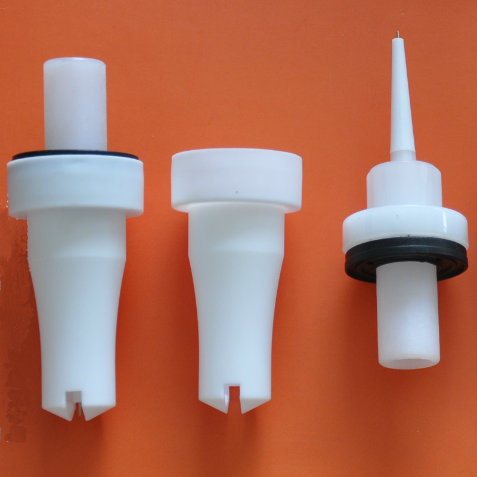

GM03 Powder Gun Flat Spray Nozzle

Flat jet nozzle NF20 - complete 1007 931#

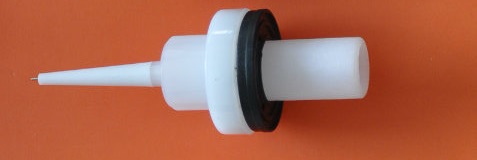

Electrode holder - complete 1007 683#

Flat jet nozzle NF20 1007 934#

GM03 Powder Coating Gun Spare Parts List

Negative polarity, gun cable 6 m 1007 972
Positive polarity, gun cable 6 m 1007 975
1 Gun body 1007 220
2 Cascade - complete, negative polarity 1007 231
Cascade - complete, positive polarity 1007 232
3 Print holder - complete 1007 216
4 End plate with hook 1007 217
5 Grip end plate - complete 1007 961
6 Trigger - complete 1007 213
7 Trigger cover 1007 212
8 Countersunk-head screw - M4x6 mm 1000 845
9 SuperCorona holder 1007 238
10 Gun cable 2 m - complete 1007 963
Gun cable 6 m - complete 1007 964
Gun cable 12 m - complete 1007 965
11 Rinsing air connection 1000 804
11.1 Rinsing air hose 100 854*
12 Powder tube - complete 1007 958 #
13 Compression spring 1001 488
14 Clip ring 1007 960
15 Hose connection Ø 11-12 mm - complete (incl. pos. 15.1) 1001 340 #
Hose connection Ø 9-10 mm - complete (incl. pos. 15.1) 1002 030 #
15.1 O ring for pos 15 1000 822 #
16 Threaded sleeve (see corresponding Spare parts list)
17 Nozzle (see corresponding Spare parts list)
18 SuperCorona PC05 1008 165#
19 Cascade space seal 1007 635#
