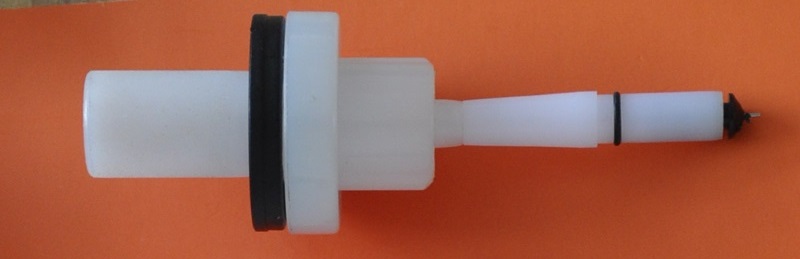

Electrode Holder 1008152 for GM02/GA03 Round Spray Nozzle (Gema NON OEM part)

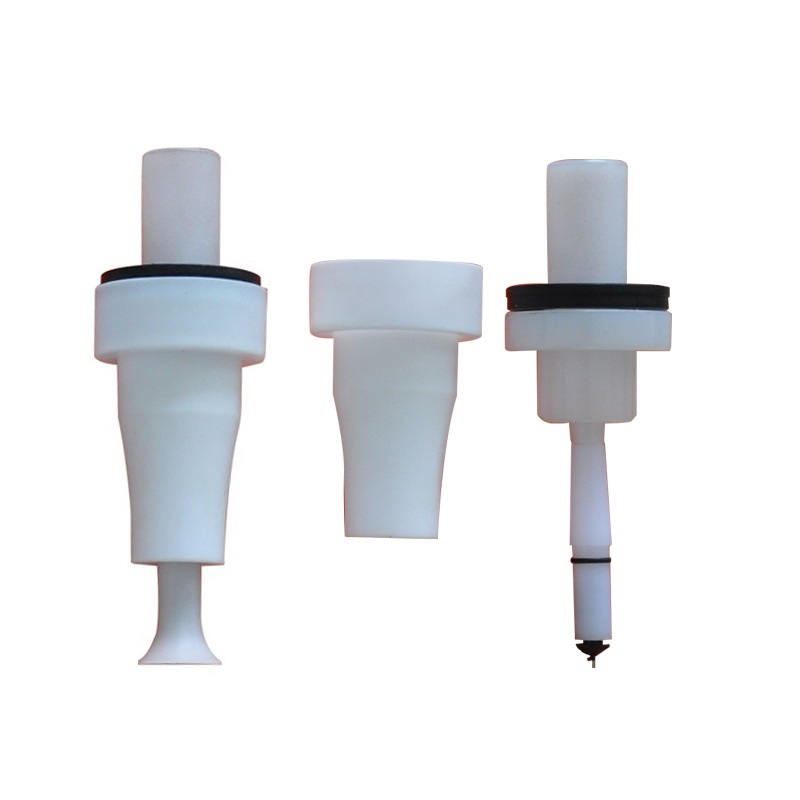

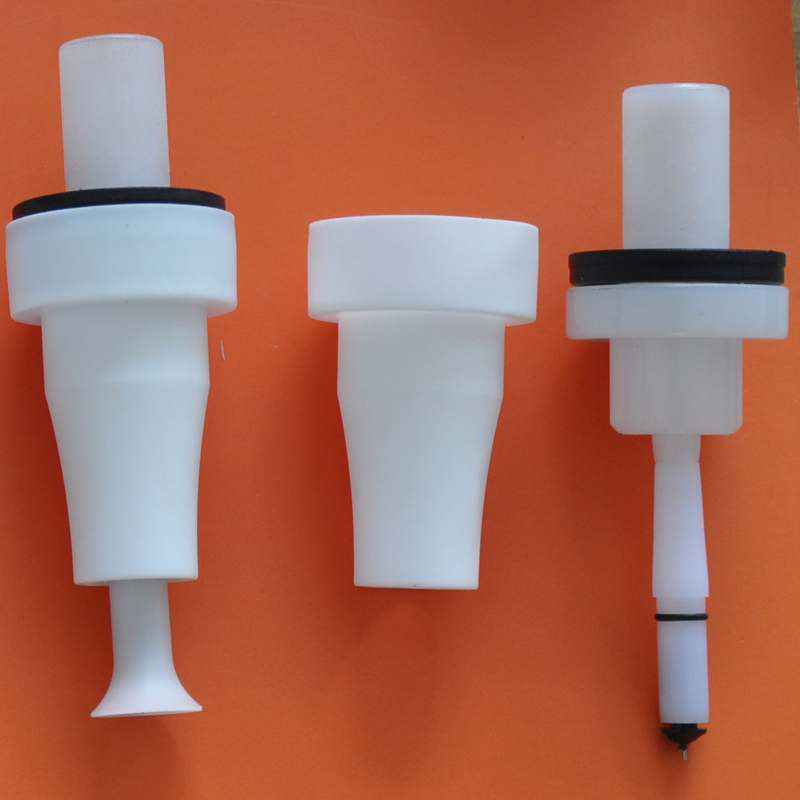

GM03/GA03 Round Spray Nozzles NS04 - complete 1008 150#

Round jet nozzle - 1008 151#

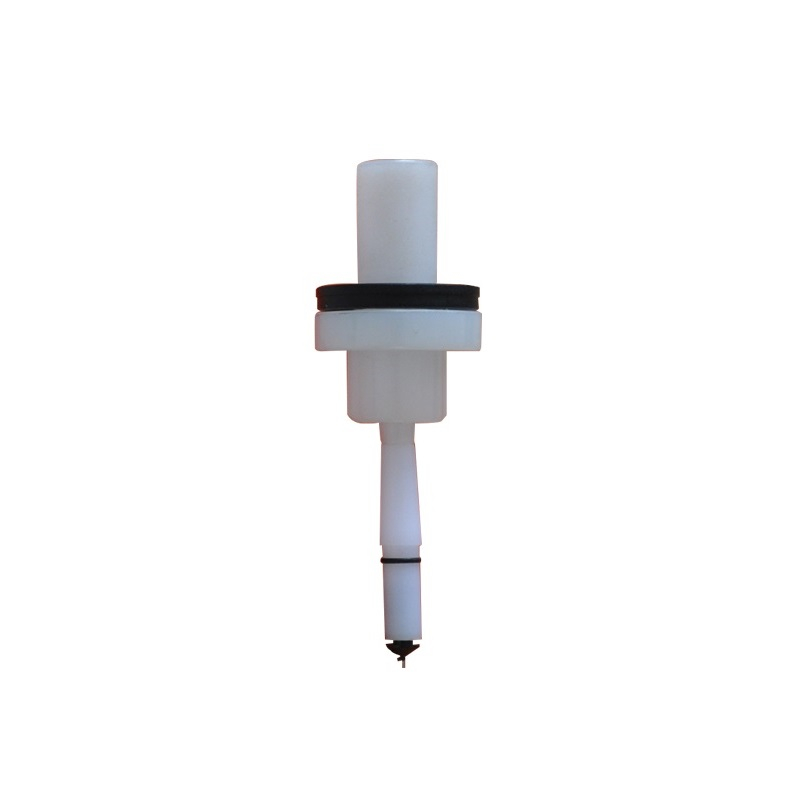

Electrode holder - complete 1008 152#

Deflector Ø 16 mm 331 341

Deflector Ø 24 mm 331 333

Deflector Ø 32 mm 331 325

Deflector Ø 50 mm 345 822

GM03 Manual Powder Coating Gun Spare Parts List

Negative polarity, gun cable 6 m 1007 972
Positive polarity, gun cable 6 m 1007 975
1 Gun body 1007 220
2 Cascade - complete, negative polarity 1007 231
   Cascade - complete, positive polarity 1007 232
3 Print holder - complete 1007 216
4 End plate with hook 1007 217
5 Grip end plate - complete 1007 961
6 Trigger - complete 1007 213
7 Trigger cover 1007 212
8 Countersunk-head screw - M4x6 mm 1000 845
9 SuperCorona holder 1007 238
10 Gun cable 2 m - complete 1007 963
Gun cable 6 m - complete 1007 964
Gun cable 12 m - complete 1007 965
11 Rinsing air connection 1000 804
11.1 Rinsing air hose 100 854*
12 Powder tube - complete 1007 958 #
13 Compression spring 1001 488
14 Clip ring 1007 960
15 Hose connection Ø 11-12 mm - complete (incl. pos. 15.1) 1001 340 #
Hose connection Ø 9-10 mm - complete (incl. pos. 15.1) 1002 030 #
15.1 O ring for pos 15 1000 822 #
16 Threaded sleeve (see corresponding Spare parts list)
17 Nozzle (see corresponding Spare parts list)
18 SuperCorona PC05 1008 165#
19 Cascade space seal 1007 635#

Pls inform us the original code or name of the spare part, we will quote you best price!
