Gema GM03 Manual Powder Gun Complete 1008 070# (NON OEM part)

Gema GM03 Manual Powder Gun Complete 1008 070#  (NON OEM part)

• On-gun remote control offers the flexibility to adjust processing data without getting away from the work, 1) Increase or reduce powder output correspondingly. 2) Program change switching between programs P01-P20.

• Activate/stop powerclean process (injector, powder hose and gun are rinsed) – only if the optional PowerClean module is present and attached.

• Powder hose quick release connection - Quick and simple connection and release from powder hose and application cup

• Connection for SuperCorona Ring - Easy connection and disconnection of SuperCorona ring


• Built-in 100 kV cascade delivers the highest transfer efficiency, meaning more powder utilization on the workpiece, less powder waste!

• Ergonomically design offers comfort to users, reduces fatigue during long time operating.


Supply All Replacement Spare Parts for GM03 Manual Powder Gun

1 Gun body 1007 220

2 Cascade - complete, negative polarity 1007 231

   Cascade - complete, positive polarity 1007 232

3 Print holder - complete 1007 216

4 End plate with hook 1007 217

5 Grip end plate - complete 1007 961

6 Trigger - complete 1007 213

7 Trigger cover 1007 212

8 Countersunk-head screw - M4x6 mm 1000 845

9 SuperCorona holder 1007 238

10 Gun cable 2 m - complete 1007 963

     Gun cable 6 m - complete 1007 964

     Gun cable 12 m - complete 1007 965

11 Rinsing air connection 1000 804

11.1 Rinsing air hose 100 854*

12 Powder tube - complete 1007 958 #

13 Compression spring 1001 488

14 Clip ring 1007 960

15 Hose connection Ø 11-12 mm - complete (incl. pos. 15.1) 1001 340 #

     Hose connection Ø 9-10 mm - complete (incl. pos. 15.1) 1002 030 #

15.1 O ring for pos 15 1000 822#

16 Threaded sleeve

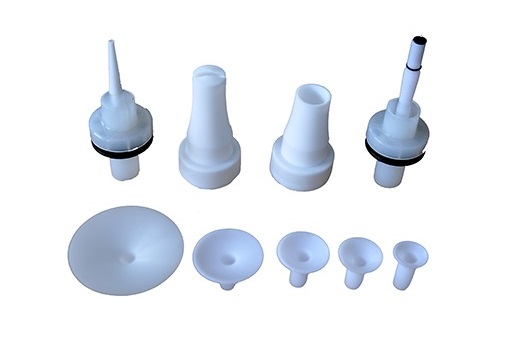

17 Nozzles

GM03 Round Spray Nozzles NS04 - complete 1008 150#

Round jet nozzle - 1008 151#

Electrode holder - complete 1008 152#

Deflector Ø 16 mm 331 341

Deflector Ø 24 mm 331 333

Deflector Ø 32 mm 331 325

Deflector Ø 50 mm 345 822

GM03 Flat Jet Nozzle NF20 - Complete 1007 931

Flat jet nozzle NF20 - complete 1007 931#

Flat jet nozzle NF20 1007 934#

Electrode holder - complete 1007 683#

If you need complete GM03 powder gun, or spare parts, or any other gema non-oem replacements, pls contact us!
