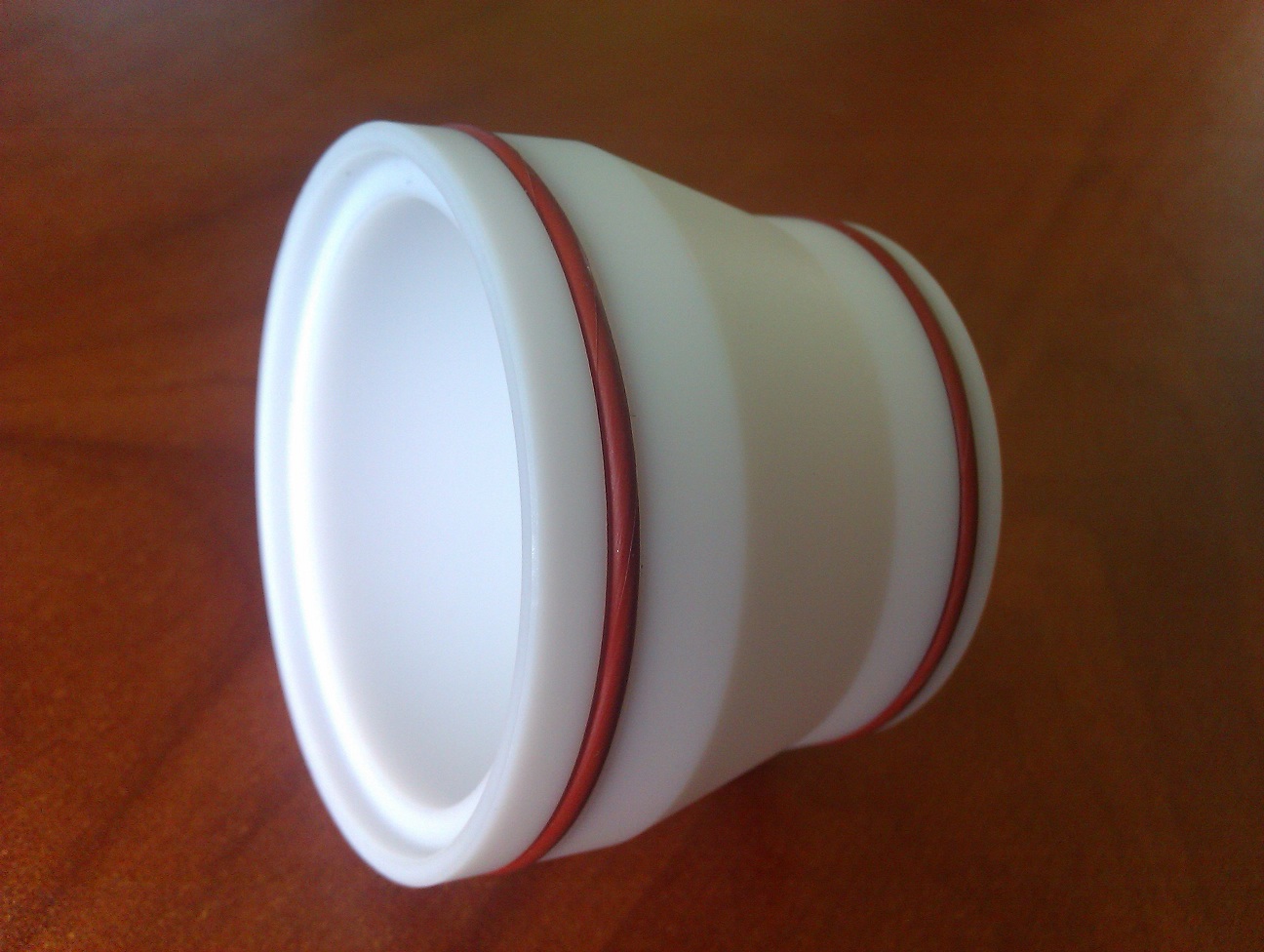

Tribomatic Inlet Wear Sleeve Assembly, PTFE, 631232

Tribomatic Inlet Wear Sleeve Assembly, PTFE, 631232

Tribomatic Charge Module Spare Parts

Nordson Tribomatic Automatic Powder Spray Gun Parts

The Charge Module Service Kit 631207 Including Item 2-15

1 631225 Extension
2 631221 Outlet wear sleeve assembly, PTFE
3 940224  O-ring, silicone, 1.00 x 1.125 x 0.063 in.
4 631222  Spring, silicone, 1.25 x 1.50 in.
5 631220 Spacing ring
6 631212 Outer wear sleeve, PTFE
7 940284  O-ring, silicone, 1.375 x 1.50 x 0.063 in.
8 631224 Outlet distributor, PTFE
9 631216 Inner wear sleeve, PTFE
10 631210 Positioning ring
11 631211 Stud, M8 x 9.65 in. long
12 631234 Distributor, inlet, PTFE
13 631232 Inlet wear sleeve assembly, PTFE
14 940284  O-ring, silicone, 1.375 x 1.50 x 0.063 in.
15 940243  O-ring, silicone, 1.125 x 1.25 x 0.063 in.
16 631228 Body Assembly
