Tribomatic Automatic Gun Spray Heads

Tribomatic Automatic Gun Spray Heads

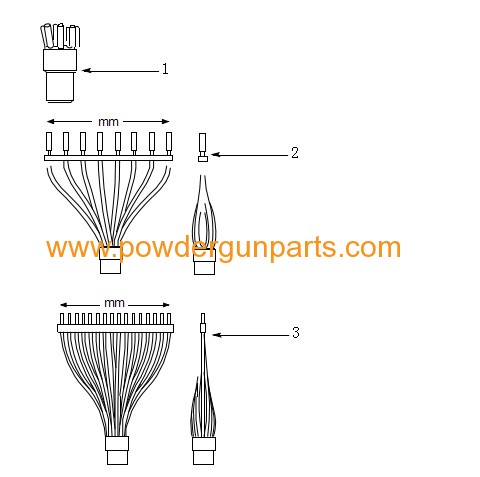

Item Part Description Note

8-Tube Sprayheads

1 630010 Short, 8 tube

2 630330 105 mm, fixed, 8 tube

2 630209 130 mm, fixed, 8 tube

2 630169 165 mm, fixed, 8 tube

2 630201 200 mm, fixed, 8 tube

2 630322 235 mm, fixed, 8 tube

2 630008 270 mm, fixed, 8 tube

2 630184 305 mm, fixed, 8 tube

2 630171 360 mm, fixed, 8 tube

2 630208 425 mm, fixed, 8 tube

2 630323 460 mm, fixed, 8 tube

- 630017 Cylindrical nozzle, 8 tube A

16-Tube Sprayheads

3 630326 230 mm, fixed, 16 tube

3 630336 260 mm, fixed, 16 tube

3 630363 365 mm, fixed, 16 tube

3 630369 425 mm, fixed, 16 tube

3 630366 515 mm, fixed, 16 tube

- 630340 Cylindrical nozzle, 16 tube B

8-Tube Sprayhead Nozzles

— 630017 Cylindrical

— 630018 Flat

— 630019 8 orifice

— 630166 Pinpoint

16-Tube Sprayhead Nozzles

— 630391 Flat

— 630390 8 orifice

— 630392 Pinpoint

NOTE  A: This nozzle is included with all 8-tube fixed sprayhead nozzles.
B: This nozzle is included with all 16-tube fixed sprayhead nozzles.
