KF-669T-B
| Quantity: | |
|---|---|

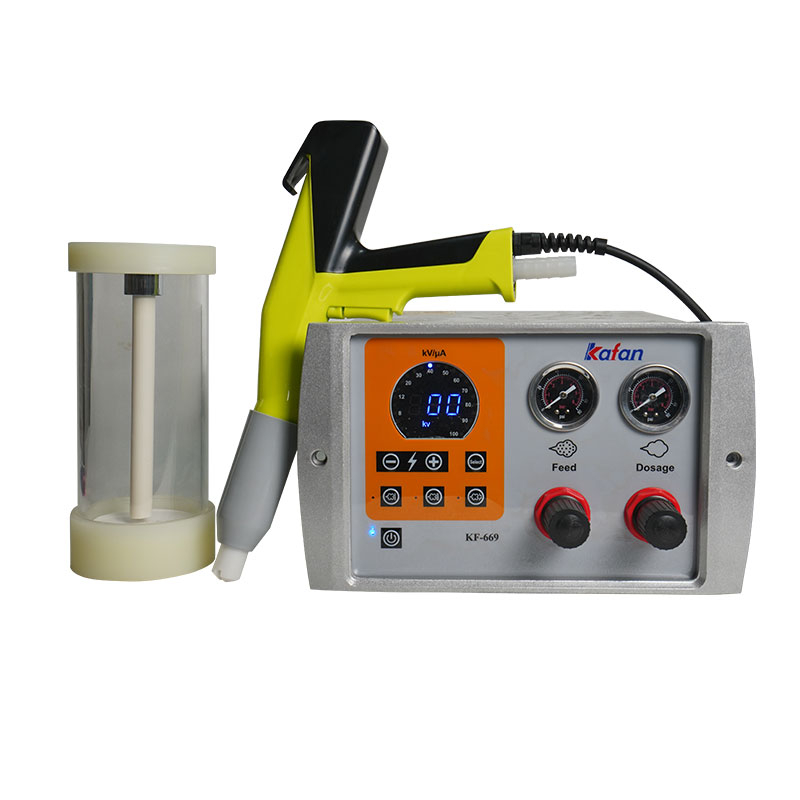

KF-669T-B mini powder coating machine equipped with 2 lbs fluidizing hopper, ideal for powder coating small parts, sample testing or laboratory use, with advantages of simple cleaning and fast color change, features space-saving and easy to carry. Comes with user-friendly one-touch operation buttons, which is convenient to change the shape for coating, it is ideal for spraying workpiece with different workpieces.
- The intelligent controller with 0-100kV adjustable voltage is ideal for powder coating objects with different shapes
- Flexibile adjustment of voltage and current with dashboard display, easy adjustment of the powder output and atomization with knobs.
- There are one-touch operation buttons and user-friendly operating interface for easily setting parameters.
Offers beginners 3 pre-set application programs, use the touch keys to select any of the electrostatic coating processes
- Flat mode, suitable simple panel shaped parts.
- Corner mode, suitable for coating deep corner.
- Re-coat mode, suitable for repeat coating which has already been coated.
- 100KV High Voltage powder spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.
-- Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.
- We supply full array of nozzle assortment, including round nozzles with various deflectors, flat nozzles, and extension nozzles.
- Round and flat spray nozzles are suitable for most common workparts, nozzles with an extension is easier to penetrate deep corners. Users can change freely between different types to meet their needs.

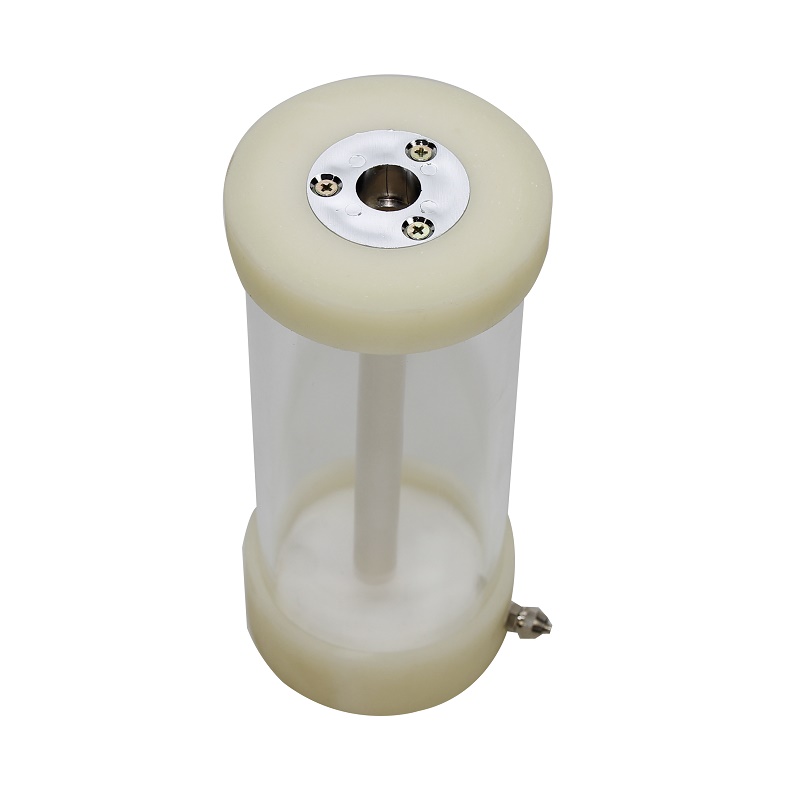

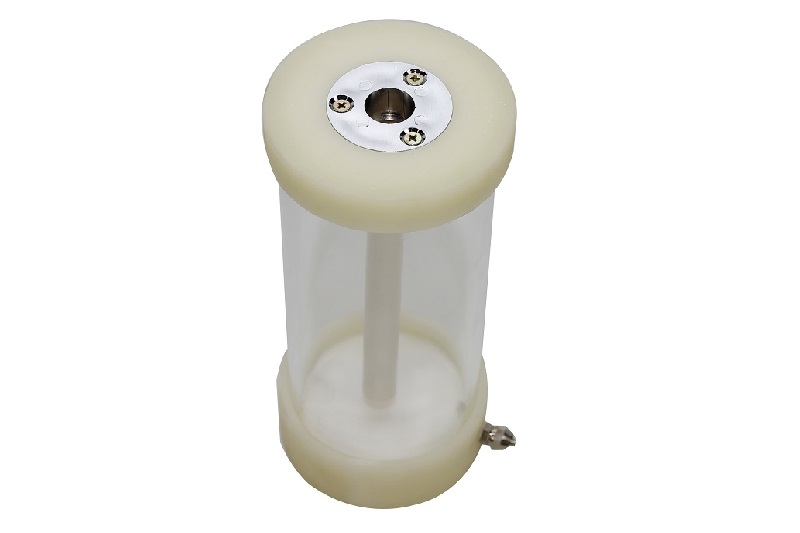

- Size: D10xH20cm, Capacity: 2 pounds powders.
- Made of non-stick materials, can be dismounted into parts, which is easy to clean during color change.
- The powder hopper with fluidizng board prevents the powder block, delivers smooth powder flow.
- It is also well sealed that keeps the powders from contaminants and damp.
KF-669 Electrostatic Powder Coating Machine Parameters
| Model | KF-669T-B |
| Power range | 220V/110V (can be customized) |
| Frequency | 50HZ/60HZ |
| Temperature range in use | -10 ℃+50 ℃ |
| Gun Weight | 500G |
| Rated Output Voltage | 24V DC |
| Maximum Output Current | 180Ua(max) |
| Maximum Powder Injection | 600g/min |
| Polarity | negative (-) |
