Heat transfer printing powder coating
The features of the thermal transfer powder coating:
Products of different gloss are available, namely, high gloss (above 80), semi gloss(50-80), flat gloss (20-50)and no gloss (below 20). The gloss can be adjusted according to the customersdemand.
Physical properties of the powder
Density :1.4-1.7 g/cm3
Granularity distribution100 below 100(It can be adapted to the specific demand of coating)
Curing Condition
Depending on the types of different products. For detailed information, please check the instruction book attached to our products.
Coating performance
Testing items | Standards and methods | Inspecting index |
Impact strength | GB/T1732-1993 | 50/ |
Adhesion | GB/T9286-1998 | Grade 0 |
Bending resistance | GB/T6742-1986 | 2 |
Pencil hardness | GB/T6739-1996 | 1H-2H |
Slat mist resistance | GB/T1771-1991 | 500h |
Heat moist resistance | GB/T1740-1979 | 1000h |
Heat resistance | 110/24h(all color) | Good gloss retention, |
Notations 1.The tests above used the cold rolling steel plate of 0.8mm thick with preceding standard treatment. The thickness of the coating layer is 60-80um. |
·
·
Average coating rate
A. Smooth Surface:
6-12/KG, film thickness 60μm (calculated according to 100 consuming of powder coating)
B. Texture Surface:
5-7/KG,film thickness is about 80-120μm

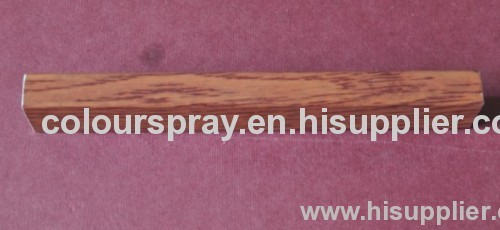

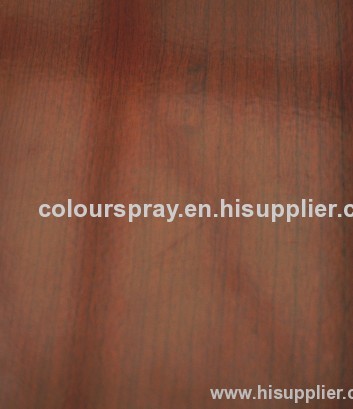

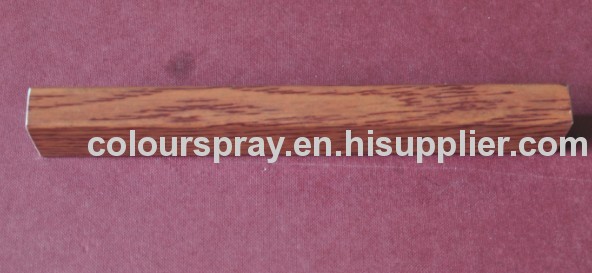

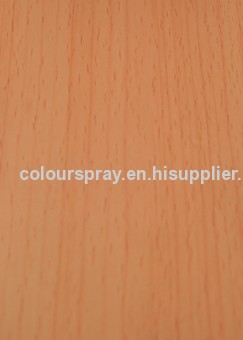

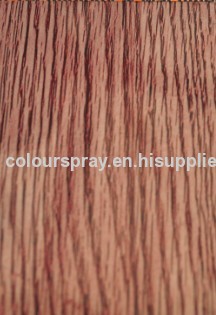

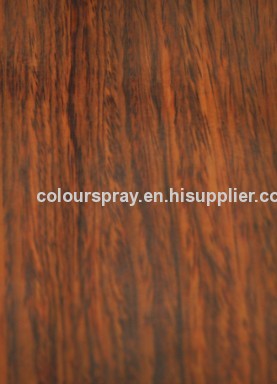

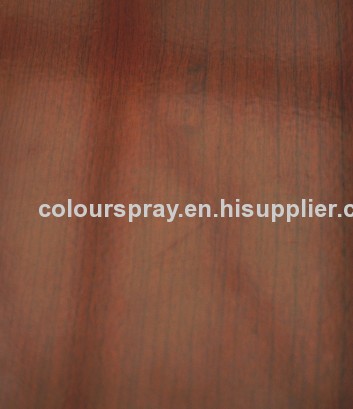

Transfer printing wood grain powder coating
Description
Sublimation powder coating is also called Heat Transfer Powder Coating because of the process of heat transfer printing.This process is a sublimation process,which is a phisycal-chemical transition of a pattern from transfer paper or film to a substrate which is pre-coated with a special powder designed to be as the base color of this sublimation.
Through this sublimation process countless effects and patterns such as woodgrain, marble, granite, fancies, pictures can be transferred on substrate surfaces.
This series is available in a variety of color, gloss, finishes and shapes.
The coating is flexible and non-sticky paper, so that the prefabricated steel could be coated with this products before post-forming.
To learn more about this application process,please refer to Heat Transfer Process.
Powder Characteristic
Chemistry: Epoxy Polyester/Polyester / Polyurethane
Particle size: Suitable for electrostatic spraying
Specific gravity: 1.2-1.7g/cm3 up to colors
Curing schedule(object temp.): 180°C/10-15minutes;200°C/6-10minutes;
Storage: Dry ventilation conditions below 30°C
Shelf life: 12months
Application Area
Furniture
General Industry
Architecture Construction
Preparation of wood powder coating process
First certain colors sprayed onto the workpiece heating the powder so that the powder is completely cured, the workpiece down to room temperature after the adhesive paste transfer paper and then into the oven bake 165 degrees 20 minutes (due to different workpiece temperature and heat transfer at different times), then the solution out of the transfer paper, washing drying, spray transparent paint.
Heat transfer printing powder coating
The features of the thermal transfer powder coating:
Products of different gloss are available, namely, high gloss (above 80), semi gloss(50-80), flat gloss (20-50)and no gloss (below 20). The gloss can be adjusted according to the customersdemand.
Physical properties of the powder
Density :1.4-1.7 g/cm3
Granularity distribution100 below 100(It can be adapted to the specific demand of coating)
Curing Condition
Depending on the types of different products. For detailed information, please check the instruction book attached to our products.
Coating performance
Testing items | Standards and methods | Inspecting index |
Impact strength | GB/T1732-1993 | 50/ |
Adhesion | GB/T9286-1998 | Grade 0 |
Bending resistance | GB/T6742-1986 | 2 |
Pencil hardness | GB/T6739-1996 | 1H-2H |
Slat mist resistance | GB/T1771-1991 | 500h |
Heat moist resistance | GB/T1740-1979 | 1000h |
Heat resistance | 110/24h(all color) | Good gloss retention, |
Notations 1.The tests above used the cold rolling steel plate of 0.8mm thick with preceding standard treatment. The thickness of the coating layer is 60-80um. |
·
·
Average coating rate
A. Smooth Surface:
6-12/KG, film thickness 60μm (calculated according to 100 consuming of powder coating)
B. Texture Surface:
5-7/KG,film thickness is about 80-120μm
Transfer printing wood grain powder coating
Description
Sublimation powder coating is also called Heat Transfer Powder Coating because of the process of heat transfer printing.This process is a sublimation process,which is a phisycal-chemical transition of a pattern from transfer paper or film to a substrate which is pre-coated with a special powder designed to be as the base color of this sublimation.
Through this sublimation process countless effects and patterns such as woodgrain, marble, granite, fancies, pictures can be transferred on substrate surfaces.
This series is available in a variety of color, gloss, finishes and shapes.
The coating is flexible and non-sticky paper, so that the prefabricated steel could be coated with this products before post-forming.
To learn more about this application process,please refer to Heat Transfer Process.
Powder Characteristic
Chemistry: Epoxy Polyester/Polyester / Polyurethane
Particle size: Suitable for electrostatic spraying
Specific gravity: 1.2-1.7g/cm3 up to colors
Curing schedule(object temp.): 180°C/10-15minutes;200°C/6-10minutes;
Storage: Dry ventilation conditions below 30°C
Shelf life: 12months
Application Area
Furniture
General Industry
Architecture Construction
Preparation of wood powder coating process
First certain colors sprayed onto the workpiece heating the powder so that the powder is completely cured, the workpiece down to room temperature after the adhesive paste transfer paper and then into the oven bake 165 degrees 20 minutes (due to different workpiece temperature and heat transfer at different times), then the solution out of the transfer paper, washing drying, spray transparent paint.
